RFID Antennas for Portals, Gateways & POS Systems
JN RFID designs and manufactures high-performance UHF and HF antennas as part of its specialized RFID antenna products line, with optimized gain and polarization configurations, delivering precise and stable tracking across access control channels, warehouse logistics, and retail checkout environments.
- Versatile Form Factors
Engineered to integrate seamlessly into portal gates, smart shelving, desktops, and industrial assembly lines. - Optimized Gain & Polarization
Selectable options ranging from localized short-range read/write fields to long-range identification zones. - Universal Compatibility
Fully compatible with mainstream RFID readers, modules, and global tag ecosystems. - OEM/ODM Tailoring
Custom enclosures, specialized RF interfaces, and ruggedized mounting hardware tailored to your deployment needs.
Bulk Sourcing & Technical Selection Support: WhatsApp +86 13954091520 | info@jnrfid.com
Explore High-Performance RFID Antenna Types by Application
From high-volume logistics access portals to low-profile retail desktop checkout stations, we engineer specialized RFID antenna types optimized for specific read distances, polarization requirements, and deployment environments across our RFID products.

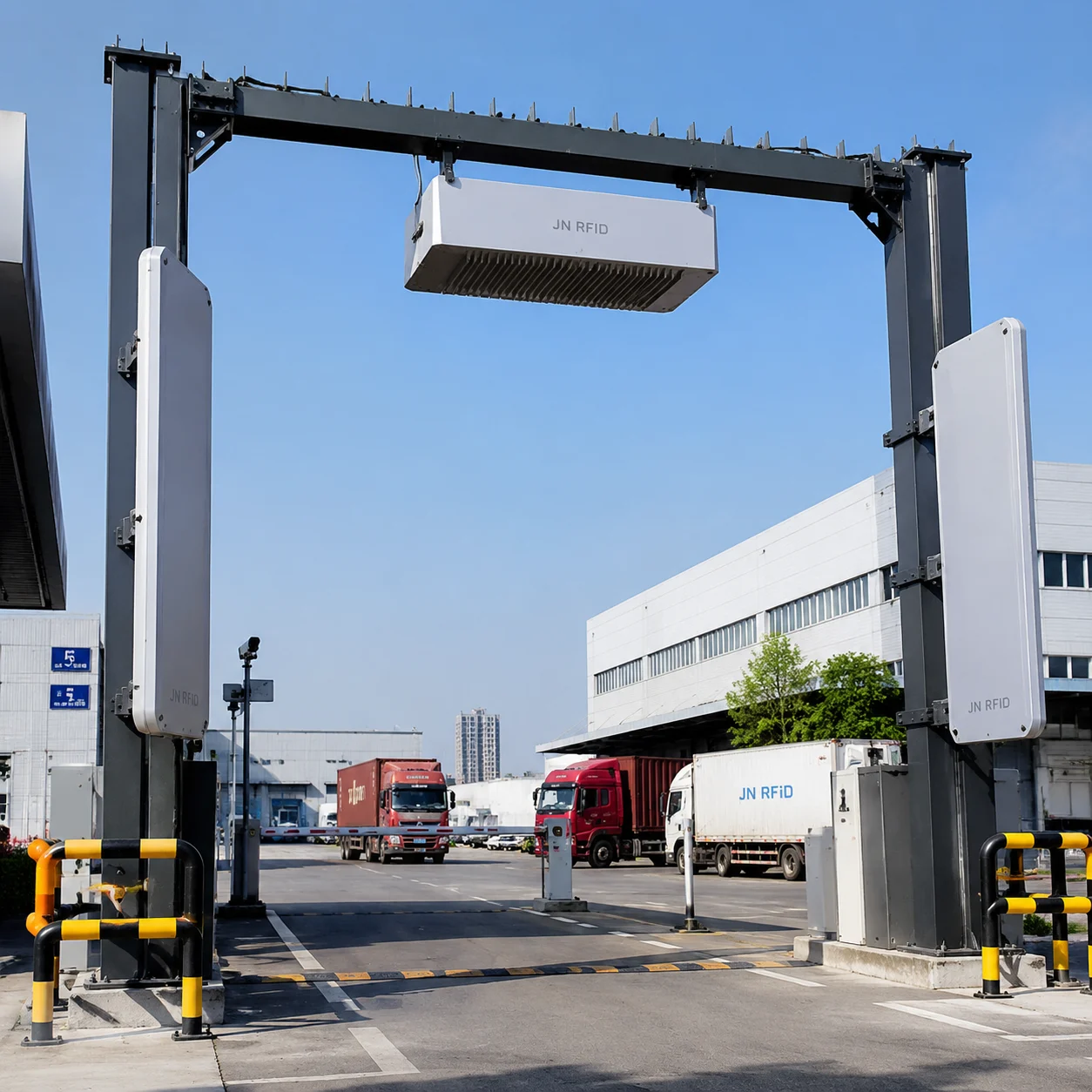

Portal & Gate Antennas
Engineered for heavy-duty access gates and warehouse entry points.
Optimized for long-range identification with high gain control.
Supports heavy-duty protective frames and bracket pole mounting.

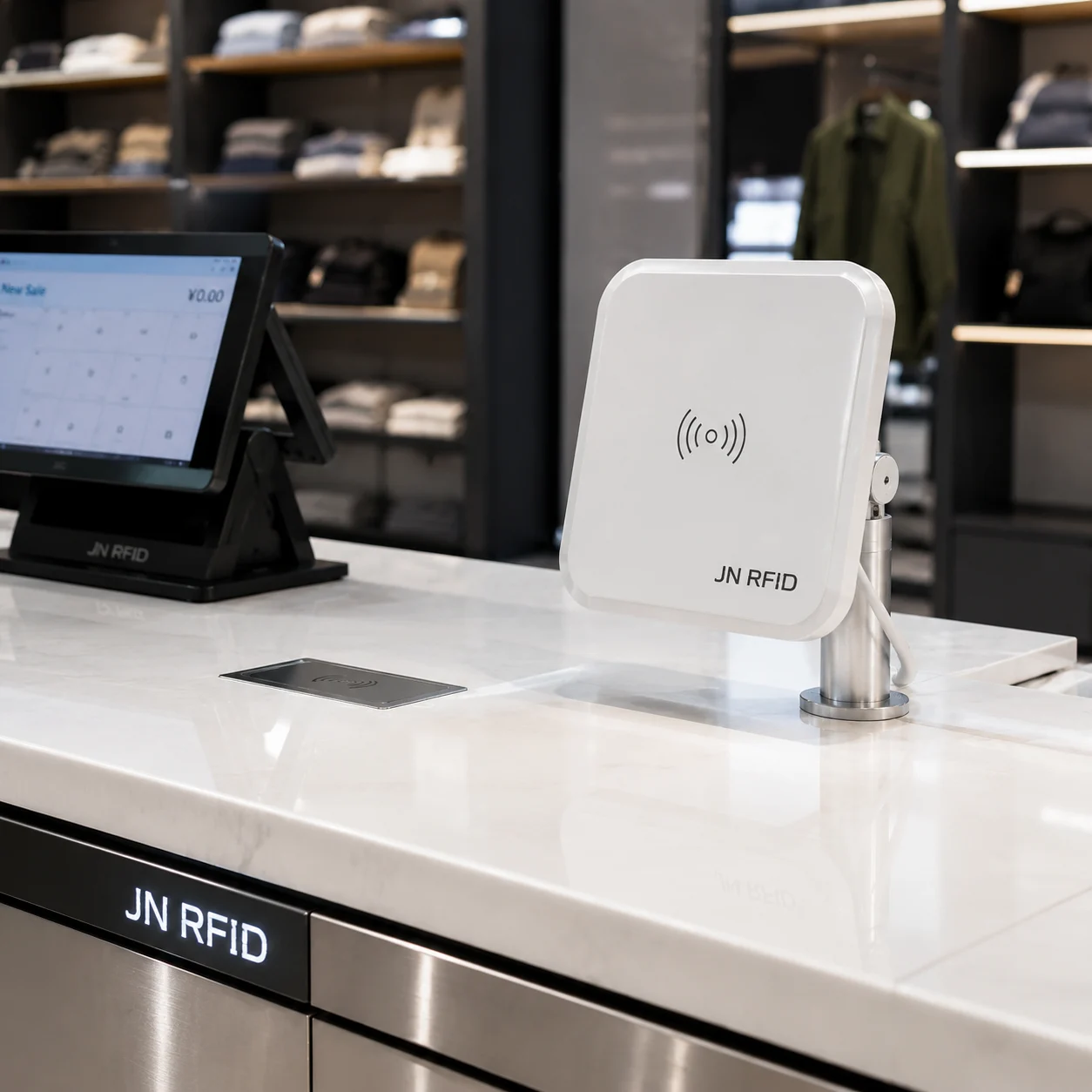

Desktop & POS Antennas
Low-profile, compact design for confined, short-range reading.
Prevents stray reads at retail checkouts and self-service terminals.
Shielded near-field options for precise workspace integration.

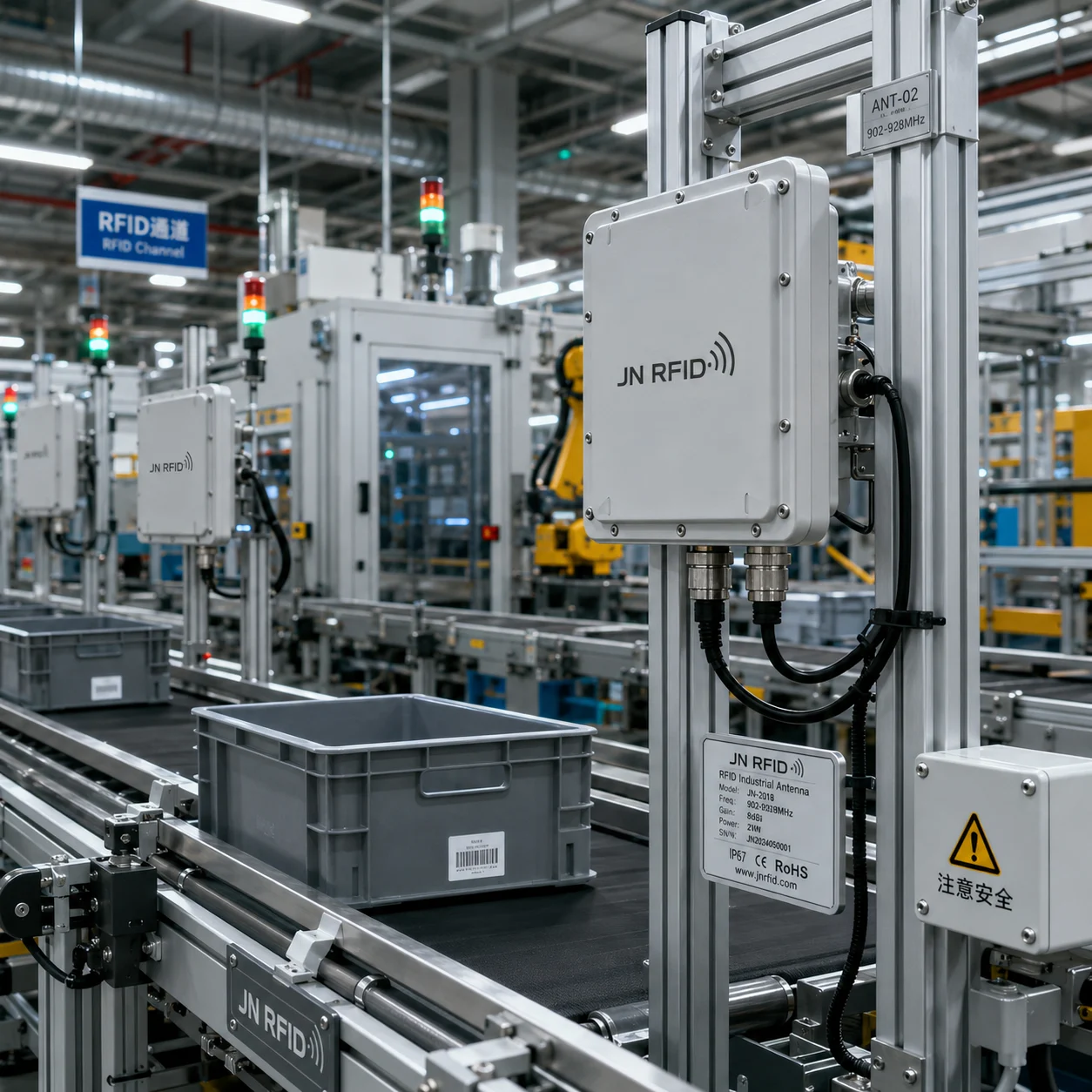

Industrial Line Antennas
IP67-rated waterproof, dustproof, and thermal-resistant housings.
Seamless integration onto conveyor tracks and tooling fixtures.
Maintains consistent tag matching in high-vibration zones.

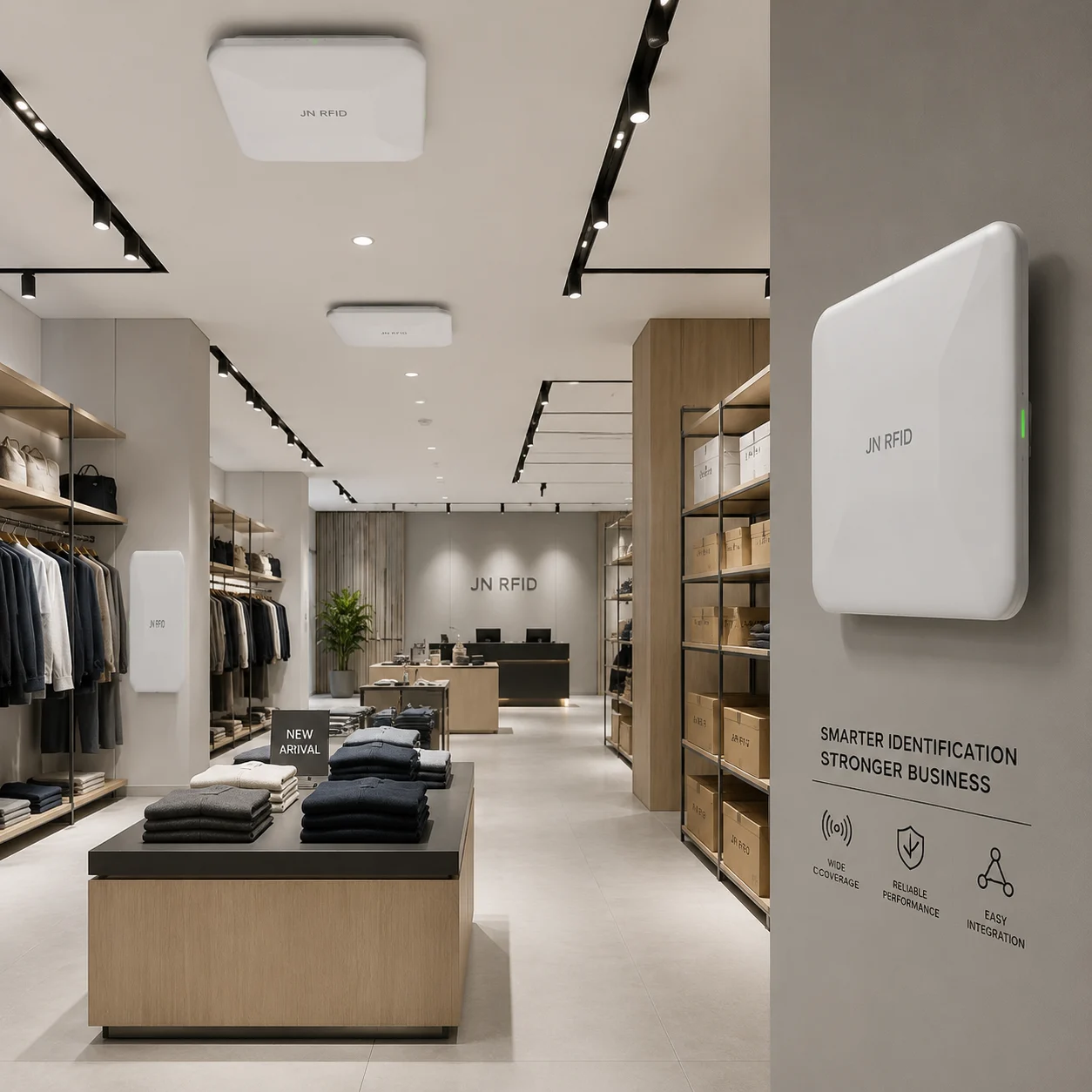

Ceiling & Wall Antennas
Concealed, aesthetic enclosures for modern indoor spaces.
Ideal for retail traffic analytics and real-time asset tracking.
Wide-angle coverage to minimize blind spots across open areas.
Unsure which polarization type or gain profile fits your hardware ecosystem? The JN RFID technical engineering team can analyze your specific project topology and onsite environmental constraints to recommend the ideal single antenna model or synchronized multi-antenna configuration, and pair them with compatible RFID cards such as access control RFID cards.
How to Choose the Right RFID Antenna for Your System
Frequency Bands and Protocols
- UHF RFID Antenna (860–960 MHz): Engineered for high-speed tracking, warehouse logistics, distribution portals, and automated inventory. Fully compatible with EPC Gen2 and ISO 18000-6C protocols for long-range deployment and ideal for reading RFID cards across portals and dock doors.
- HF & NFC Antenna (13.56 MHz): Optimized for localized, near-field applications including retail desktop POS terminals, self-service kiosks, and library checkout stations where you frequently use custom-printed RFID cards for branding and secure customer interaction. Fully supports ISO 14443 and ISO 15693 hardware standards.
RFID Antenna Gain and Read Distance
- Low-gain options (below 6 dBi) provide short-range, tightly controlled read zones to eliminate stray reads from adjacent tags or neighboring inventory bins.
- Medium-to-high gain configurations (6 dBi to 12 dBi+) deliver deep signal penetration, making them perfect for wide corridor checkpoints, dock doors, and high-ceiling asset tracking.
- Maximum operational distance depends heavily on reader transmission power, RF cable attenuation, tag tuning, line-of-sight obstructions, and environmental interference, especially when reading access control RFID cards in secure entry systems.
RFID Antenna Polarization
- Linear polarization focuses RF energy in a single orientation, offering maximized read distances when tag orientation is fixed and predictable, such as on uniform assembly lines and conveyor tracks.
- Circular polarization propagates RF signals in a continuous rotation, rendering it highly versatile for personnel gates, baggage handling, and tracking palleted assets arriving at unpredictable angles.
Protection Rating and Installation Environment
- Heavy industrial and outdoor deployments utilize ruggedized enclosures featuring IP65 to IP67 ingress protection and multi-point mounting plates to survive extreme thermal shock, humidity, and vibrations.
- Commercial retail front-ends, commercial offices, and smart libraries benefit from ultra-low profile, aesthetic designs that integrate seamlessly into architectural fixtures and checkout counters.
- Proximity to metal structural components requires specialized on-metal RFID antenna engineering, optimized stand-off spacing, and precision RF tuning to prevent signal degradation and detuning.

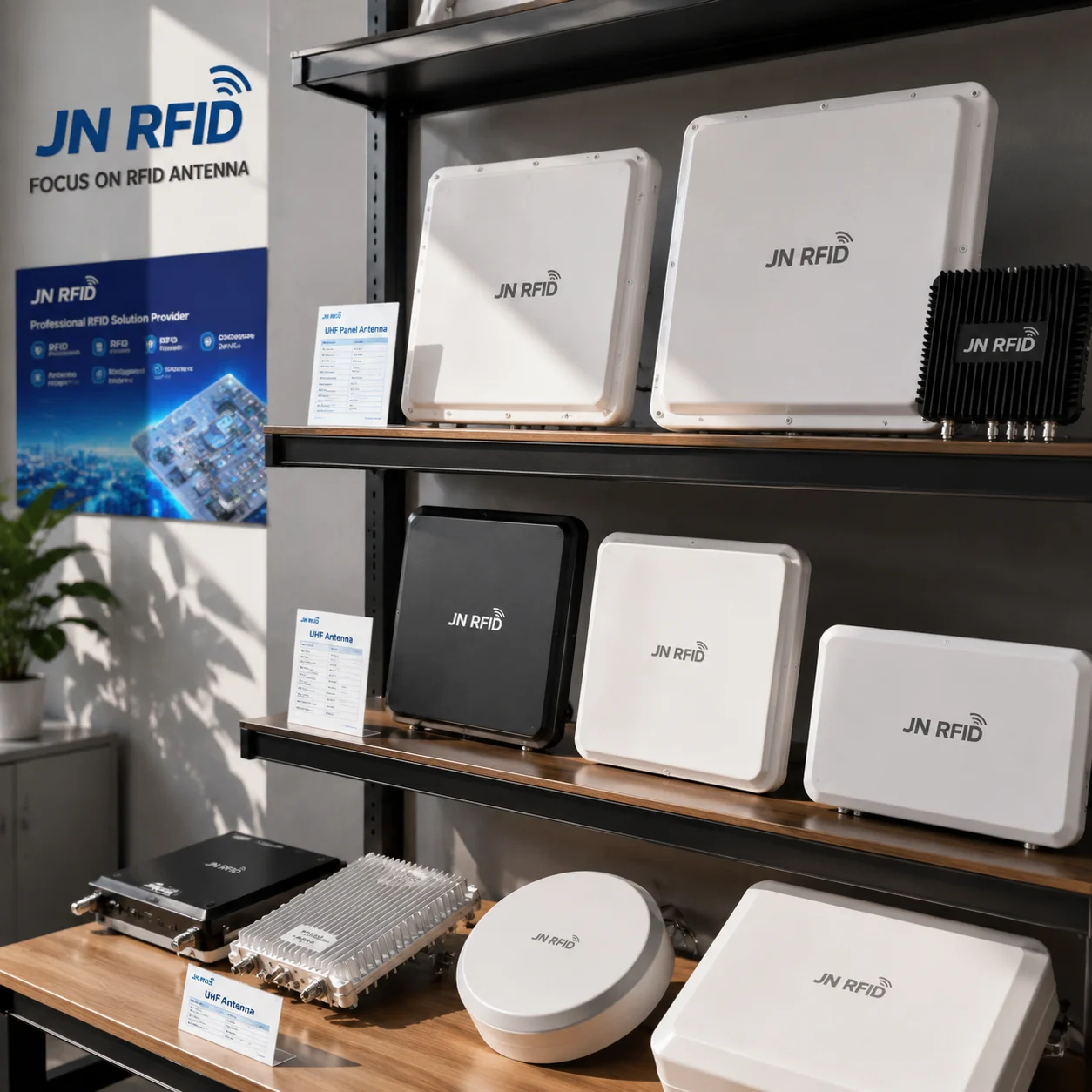

RFID Antenna Gain vs Coverage Pattern
Linear vs Circular Polarization Beam Geometry
Backed by decades of industrial RFID hardware deployment, the JN RFID engineering team maps out optimized antenna layouts based on your physical site constraints, reader hardware, and tag architecture.
Unsure about the precise gain, polarization, or frequency required for your hardware setup? Submit your project parameters to our engineering team to receive a comprehensive RFID antenna configuration assessment within 24 hours.
Key Specifications of Featured RFID Antenna Models
JN RFID provides a comprehensive selection of standard hardware designs tailored for diverse deployment environments. The matrix below covers our high-demand configurations optimized for commercial, industrial, and retail systems. Dimensions, gain levels, connector types, and ruggedized housing features can be fully customized or adjusted to match your specific reader power and project requirements. For a broader overview of our RFID hardware and card lineup, explore our RFID products catalog to align antenna choices with compatible cards and readers.
| Model | Frequency Band | Gain (dBi) | Polarization | Dimensions (mm) | Connector Type | Protection Rating | Typical Application |
|---|---|---|---|---|---|---|---|
| JN-PORT-860 | UHF (860–960 MHz) | 9.0 dBi | Circular | 400 × 400 × 30 | Type N Female | IP65 Weatherproof | Warehouse Portals & Gate Access |
| JN-DESK-1356 | HF (13.56 MHz) | 3.5 dBi | Linear | 120 × 80 × 15 | SMA-K | IP40 Indoor | Desktop Issuers & Smart POS Stations |
| JN-IND-960 | UHF (860–960 MHz) | 11.0 dBi | Linear | 250 × 250 × 40 | TNC Female | IP67 Heavy Industrial | Industrial Production Lines & Conveyors |
| JN-CEIL-860 | UHF (860–960 MHz) | 6.0 dBi | Circular | 200 × 200 × 20 | SMA Female | IP54 Dust-resistant | Indoor Ceiling & Flush Wall Mounts |
| JN-GATE-950 | UHF (860–960 MHz) | 12.0 dBi | Circular | 500 × 300 × 35 | Type N Female | IP65 Rugged | Logistics Gateways & High-Clearance Portals |
* Technical parameters listed above serve as benchmark configurations. JN RFID supports full engineering customization, testing reports, and OEM/ODM branding options to accelerate your solution design. When pairing antennas with credentials, consider our RFID cards range, including specialized custom printed RFID cards for branding and access control applications.
RFID Antenna Applications Across Industries
Discover how JN RFID antennas are deployed in real-world industrial and commercial environments. Our high-performance hardware helps procurement teams and systems engineers optimize signal coverage, prevent stray reads, and match the exact requirements of specific industry use cases. Explore our full range of RFID hardware products to support these applications.

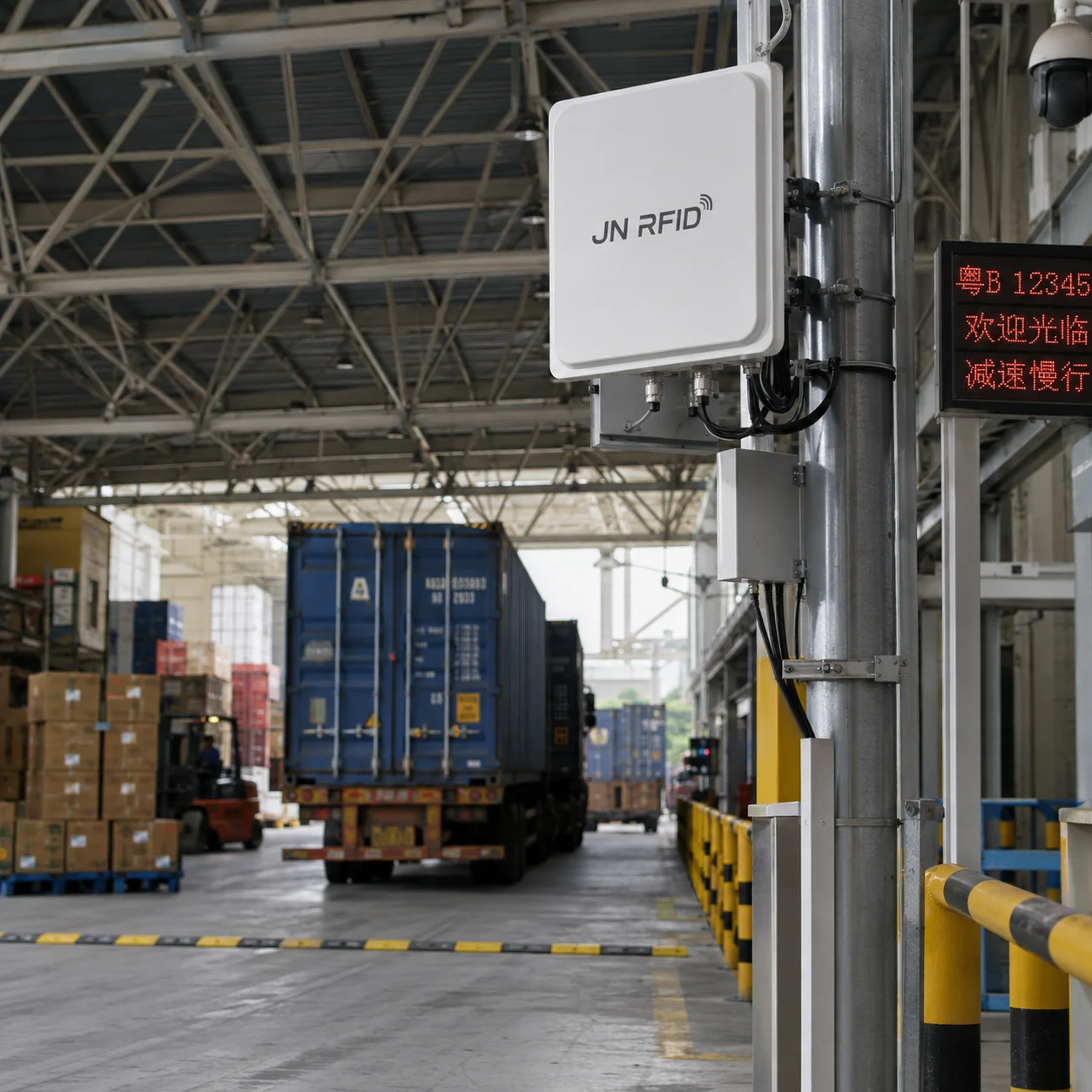

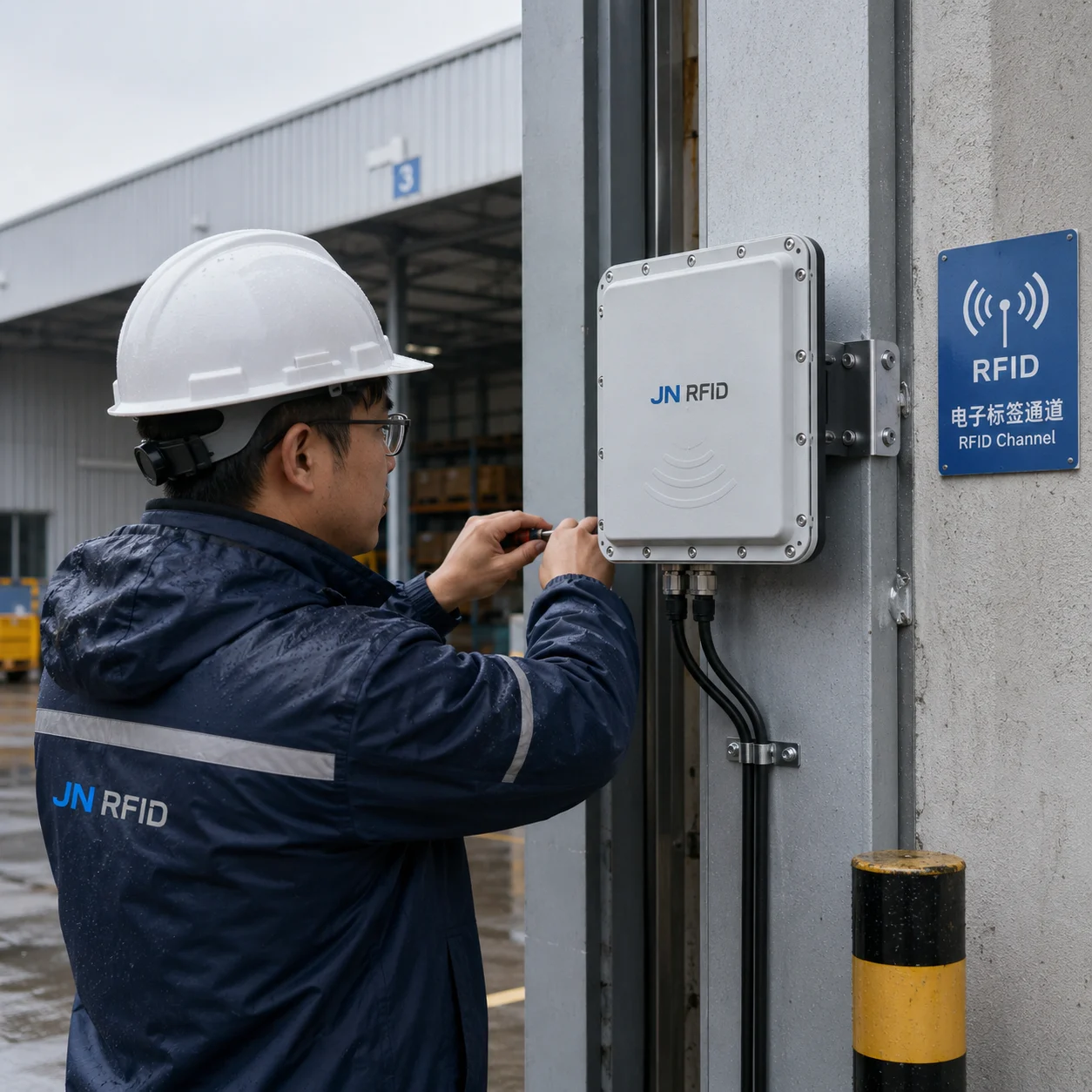

Warehouse & Logistics Access Portals
Pole-mounted or frame-integrated portal rfid antenna setups cover critical cargo passage zones, establishing reliable, automated tracking for high-volume distribution hubs.
- Medium to high gain uhf rfid antenna configurations paired with fixed readers enable instant, bulk identification of dense pallets and mixed cartons.
- Engineered for seamless integration with existing warehouse management systems (WMS) and ERP platforms to sync inventory data in real time.

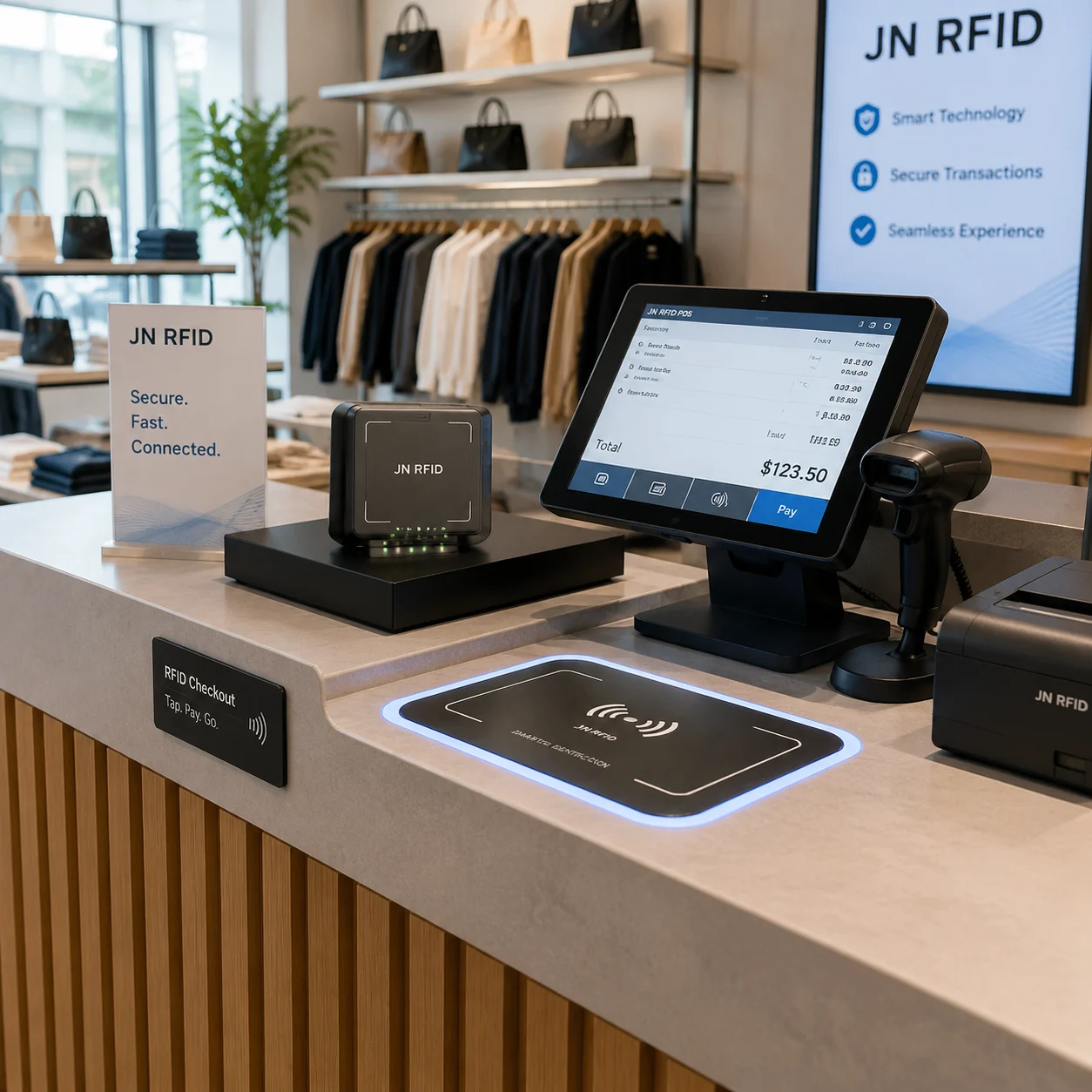

Retail Stores & POS Checkout
Compact desktop rfid antenna models are easily embedded directly into retail counters, self-checkout kiosks, and smart return bins for rapid transaction processing, and can be combined with access control RFID cards for secure entry and payment workflows.
- Highly controlled short-range read zones eliminate stray reads and prevent the accidental scanning of nearby customer merchandise.
- Versatile HF and UHF architectures support combined deployment with loyalty membership cards, smart labels, and item-level tagged products.

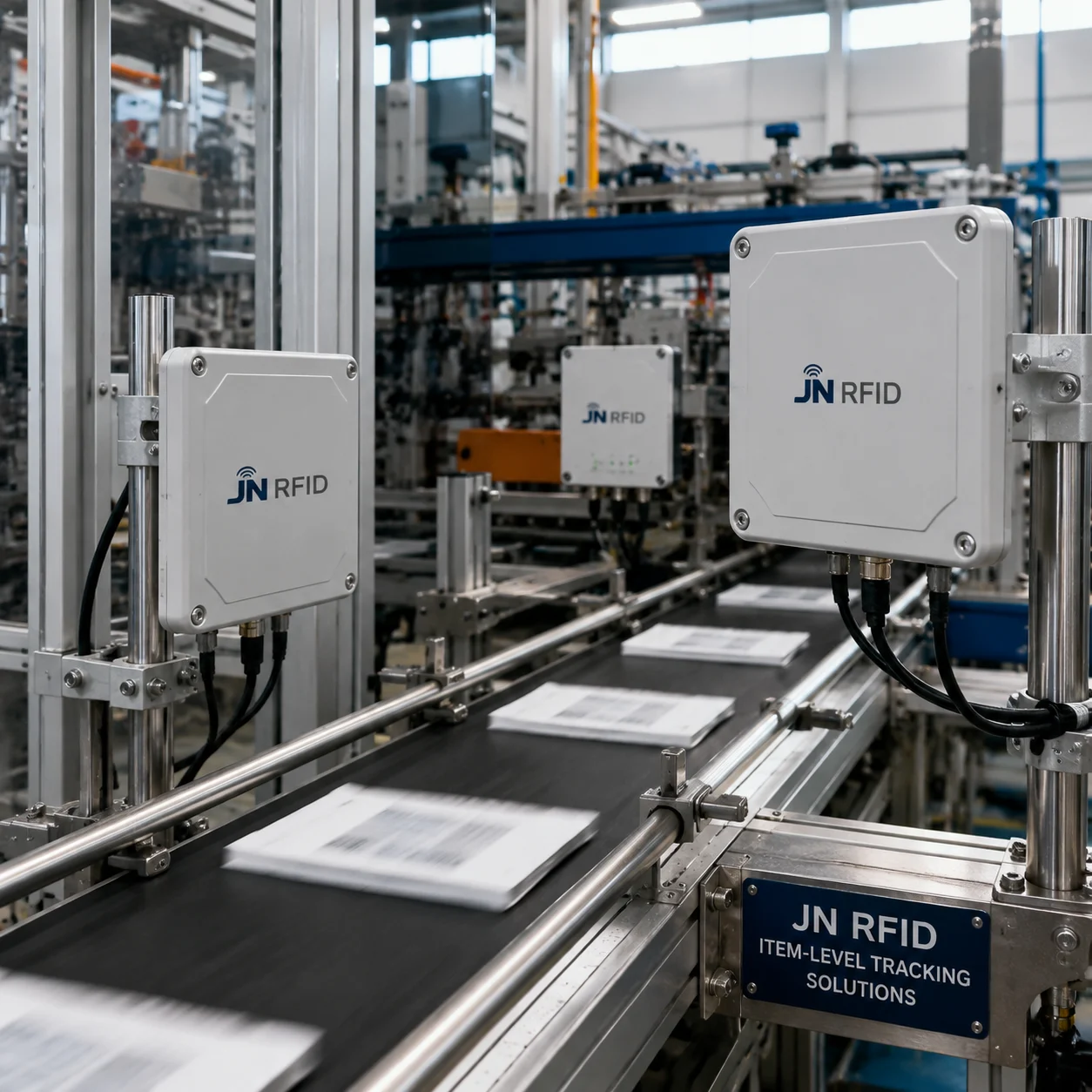

Manufacturing Lines & WIP Tracking
Rugged, linear polarized industrial rfid antenna units are securely positioned alongside or directly above high-speed conveyor lines to streamline manufacturing execution and support item-level tracking with compatible RFID cards.
- Heavy-duty industrial-grade housings offer certified resistance against heavy vibrations, oil smudges, dust, and sudden temperature fluctuations.
- Delivers stable, precise reading parameters to identify moving fixtures, digitized work orders, or components for end-to-end process visibility.
JN RFID has delivered complete RFID antenna and reader deployment solutions for logistics companies, retail chains, and manufacturing enterprises worldwide. Need a similar project solution? Consult our engineers today.

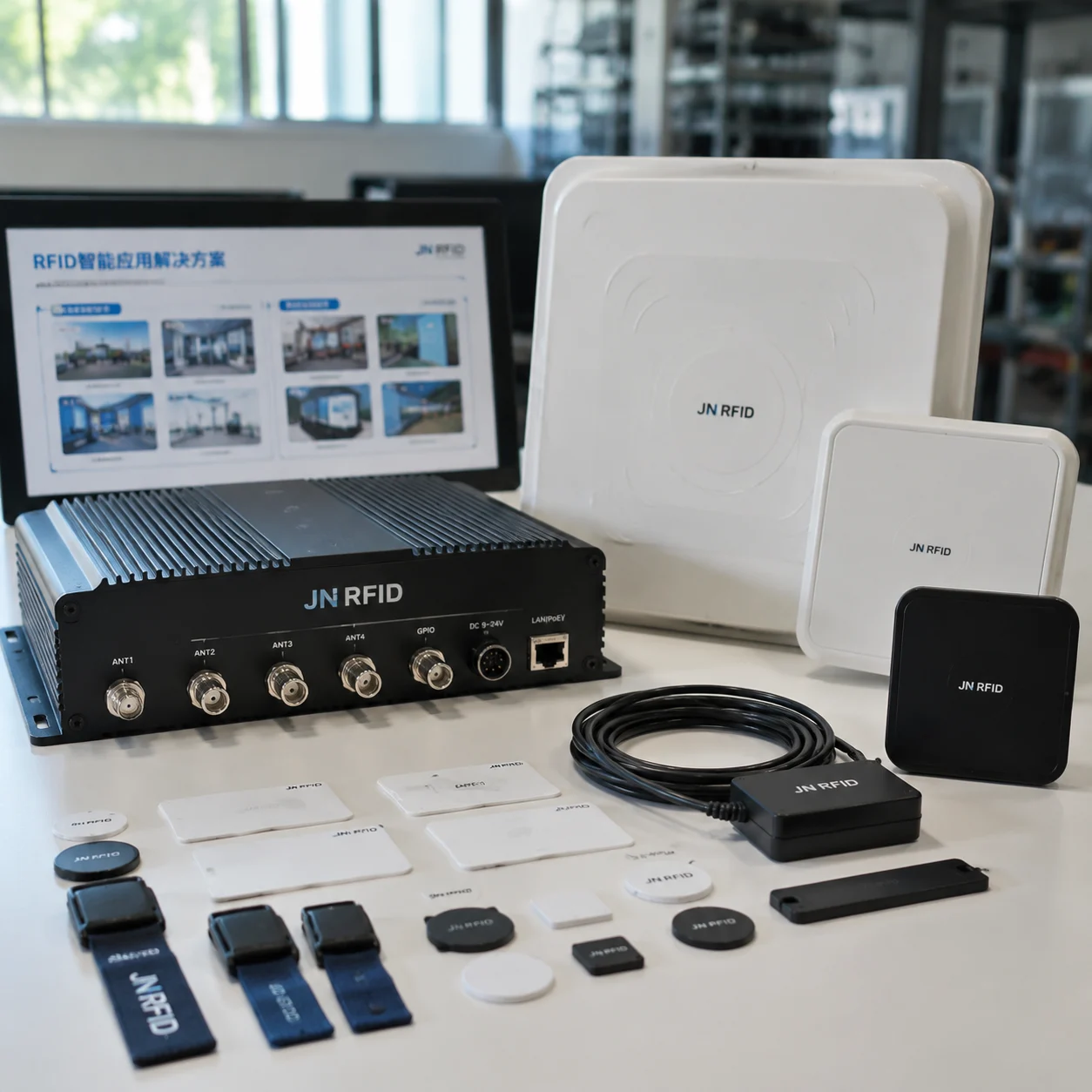

Seamless RFID Hardware Integration with Mainstream Readers and Modules
- Versatile RF Connector Support: Features standard Type N, SMA, and TNC interfaces for secure, low-loss RF cable connection to fixed RFID readers and RFID cards.
- Broad Chipset Compatibility: Fully optimized for mainstream UHF and HF reader brands built on industry-standard platforms like Impinj and Alien, ideal for high-performance custom printed RFID cards.
- One-Stop Hardware Ecosystem: Seamlessly pairs with JN RFID fixed readers and embedded modules to streamline deployment and eliminate multi-vendor component mismatched risks for access control RFID cards.
- Optimized Impedance Matching: Engineered with tight VSWR specifications to simplify onsite tuning and maximize RF power transfer to your passive tags.
Unsure about rfid antenna compatibility with your current infrastructure? Send us your current reader model, and our engineering team will evaluate your hardware setup to ensure maximum read rates.
As a trusted rfid hardware supplier, JN RFID provides matched antennas, readers, and modules to help system integrators minimize sourcing complexity and deployment friction.
Get a comprehensive hardware compatibility assessment for your reader model and antenna configuration.
Industrial-Grade Quality and Strict Quality Control
RFID antennas often operate for long periods in demanding environments, so consistency and reliability are critical. As a trusted rfid antenna supplier, JN RFID implements a structured quality management system to ensure stable, long-term field performance across all your deployments and seamless integration with RFID cards used across your applications.
ISO 9001:2015 Certified Manufacturing
Our factory follows standardized production protocols with rigorous outgoing parameter consistency testing. This guarantees that every industrial rfid antenna delivers identical, predictable read ranges from the first unit to the last, whether paired with custom printed RFID cards or other RFID transponder formats.
Premium Components & RF Engineering
We build our products using tier-one branded RF components and qualified chipset platforms. This meticulous engineering ensures long-term hardware reliability, optimal impedance matching, and high efficiency for demanding enterprise environments.
Severe Environmental Reliability Testing
To maintain peak rfid antenna reliability under harsh conditions, our designs undergo extensive environmental stress testing, including thermal cycling (high and low temperatures), humidity resistance, and industrial-grade vibration testing.
100% Pre-Shipment Performance Audits
Zero defects is our standard. Every single uhf rfid antenna undergoes a comprehensive pre-shipment inspection covering electrical parameters, read-write performance validation, and physical enclosure integrity before it leaves the JN RFID facility.
Streamlined RFID Antenna Sourcing: Our Custom OEM/ODM & Bulk Order Process
- 01
Application Consultation
Share your specific deployment scenario, frequency bands (UHF/HF), required read range, environmental factors, and projected volume so we can align the right RFID card and antenna products from the start.
- 02
Technical Selection & Samples
Our RF engineers match your project criteria with optimized gain and polarization configurations, providing fast-track prototyping and validation samples that pair seamlessly with our RFID cards.
- 03
Commercial ization
Receive transparent bulk pricing structured around your custom requirements for antennas and custom printed RFID cards, alongside clear lead times, logistics tracking, and payment terms.
- 04
Precision QA & Manufacturing
Production moves forward under strict quality standards. Every hardware batch undergoes rigorous electrical performance testing and physical verification before dispatch.
- 05
Global Shipping & Support
Benefit from secure international freight options alongside expert remote engineering assistance to ensure trouble-free integration with your RFID system.
JN RFID leverages large-scale production facilities and flexible hardware customization to tailor enclosure footprints, housing materials, corporate silk-screens, and heavy-duty mounting fixtures to your exact deployment environment.
RFID Antenna Frequently Asked Questions
Didn't find your specific question?
Get an RFID Antenna Solution Optimized for Your Project
Share your application environment, targeted read ranges, and deployment timelines. As a trusted RFID antenna supplier alongside our full range of RFID products, JN RFID will deliver tailored technical recommendations and a competitive bulk quote within 24 hours.
Contact via WhatsApp: +86 13954091520
Our engineering team will review your project requirements and respond within 24 hours.
