Overview
Uhf rfid tag alien h3 9645 inlays pair authentic Alien Higgs 3 silicon with precision-etched RFID antenna layouts for passive RFID rolls across 860-960 MHz.
- Deployment profile: Dock portals, retail backrooms, and enterprise asset tracking lanes needing reading distance to 6–10 m.
- Form factor: Dry inlay for converters, wet inlay for direct mount, or printable RFID label / RFID sticker stocks.
- Protocol target: EPC Gen 2 / ISO 18000-6C with 512-bit user memory and factory pre-encoding options.
ALN-9645 and ALN-9654 antenna geometries ship for logistics inventory management and integrator OEM programs.
Alien H3 9645 UHF RFID Tag — Technical Specifications Matrix
Authentic Alien Higgs 3 ICs bond to precision-etched RFID antenna layouts for stable passive RFID reads in portal and handheld deployments.
Alien Higgs 3 IC Core Parameters
| Feature | Technical Specification |
|---|---|
| Integrated Circuit (IC) | Alien® Higgs®-3 (H3) |
| Operating Frequency | Global UHF 860-960 MHz (FCC & ETSI compliant) |
| Air Interface Standard | EPC Gen 2 EPCglobal Class 1 Gen 2 / ISO 18000-6C |
| Memory Allocation | 96–480 Bits EPC, 512 Bits User Memory, 64 Bits Unique TID |
| Data Retention & Endurance | 50-year data retention / 100,000 write cycles |
| Antenna Geometry | Precision-etched aluminum (ALN-9645 / ALN-9654 layout) |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Read Distance Performance | Reading distance up to 6–10 meters (reader power & antenna dependent) |
Key Hardware Engineering Features
ALN-9645 and uhf rfid tag alien h3 9654 antenna variants share the same Alien Higgs 3 core with different etched geometries for label versus mini inlay footprints.
- Extended Read Range: Optimized antenna architecture enables passive read distances up to 10 meters with standard fixed or handheld readers.
- Flexible Memory Structure: Offers up to 480 bits of customizable EPC memory alongside a dedicated 512-bit user memory block for localized data storage.
- Global Frequency Compliance: Works seamlessly across the 860–960 MHz spectrum, satisfying both FCC (Americas) and ETSI (Europe) frequency regulations.
- Industrial-Grade Endurance: Built to withstand harsh temperature ranges from -40°C to +70°C while maintaining 50 years of chip data retention.
Material builds and adhesive classes pair with the Alien Higgs 3 IC parameters for converter and direct-mount lanes.

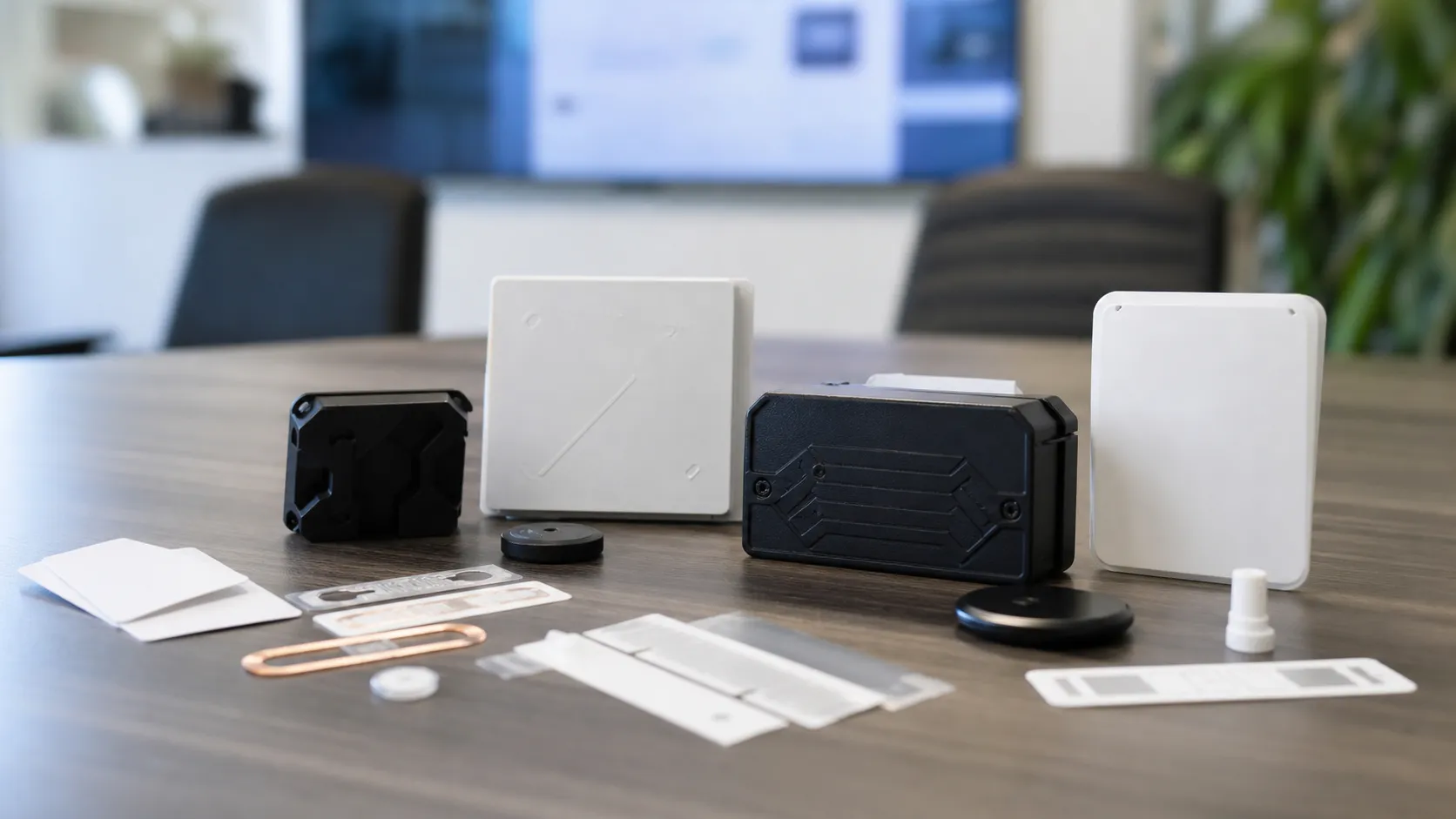

Dry Inlay, Wet Inlay & Printable RFID Label Form Factors
Production covers the uhf rfid tag alien h3 9645 across four core material builds. Whether you need raw components for high-speed label converting or finished, ruggedized stickers for harsh factory environments, we deliver high-yield layouts tailored to your exact deployment specs.
Tag Form Factors & Material Specifications
| Form Factor | Material Construction | Ideal Deployment Scenario |
|---|---|---|
| UHF RFID Dry Inlay | Aluminum antenna on thin PET substrate (no adhesive) | Roll-to-roll converting, ticketing, and card lamination |
| UHF RFID Wet Inlay | PET film with high-tack pressure-sensitive acrylic adhesive | Direct surface mounting or secondary label converting |
| Printable RFID sticker / RFID label | Thermal transfer paper or synthetic PET face stock | On-demand printing and encoding via Zebra, TSC, or Sato |
| On-Metal & Rugged Tag | High-density anti-metal foam backing or silicone casing | Metal asset tracking, outdoor tools, and heavy equipment |
Optimized Materials for Tough Industrial Applications
- UHF RFID Dry Inlay: Pure substrate-and-chip layouts designed for tag converters running automated high-speed lamination equipment.
- UHF RFID Wet Inlay: Uses a high-tack acrylic adhesive backing that bonds permanently to plastics, cardboard, and composite materials.
- Printable RFID Sticker Labels: Specially engineered face stocks ensure zero printhead slip and smooth feed operations in standard RFID printer models.
- Anti-Metal & Harsh Environment Builds: Absorbs signal interference on metal surfaces using precision foam spacers or molded silicone housings to preserve long-range read rates.
How to Select UHF RFID Tag Alien H3 9645 Inlays
Match inlay type, memory plan, and regional band before locking MOQ:
- Chip family: Authentic Alien Higgs 3 vs legacy Higgs-4 only when reader firmware requires it—9645/9654 layouts stay on H3 for 512-bit user memory.
- Inlay class: Converter dry inlay vs line-side wet inlay vs finished RFID label for Zebra/TSC/Sato encode-print lines.
- Reader pairing: Validate reading distance with fixed portal and handheld RFID reader power levels at your lane width.
- Regional band: Confirm 860-960 MHz tuning for FCC, ETSI, or dual-band rollouts.
- Volume path: Pilot 1,000-unit rolls vs bulk programs—see
buy UHF RFID tags in bulk tiers when scaling past pilot MOQ.
Protocol reference:
Gen 2 UHF RFID tags and
EPC Gen 2 passive UHF RFID tag
lines cover alternate IC and on-metal builds when ALN-9645 geometry does not fit.
Custom printing and encoding options support the logistics and retail deployment scenarios in this guide.
OEM/ODM Customization — Printing, Encoding & Die-Cut Layouts
Custom builds cover RFID labels tailored to your hardware and operational workflows. Using the Alien Higgs 3 IC, we handle conversion, surface printing, and chip encoding in-house to deliver ready-to-deploy tags for your enterprise systems.
Surface Printing & Variable Data
- Custom Surface Printing: High-resolution CMYK offset printing, Pantone spot matching, and crisp logo placement on paper, clear PET, or synthetic face stocks.
- Variable Data Printing: High-density 1D/2D barcodes, dynamic QR codes, human-readable serial numbers, and laser-etched chip UIDs matched directly to embedded EPC data.
Chip Pre-Encoding & Security
- Memory Configuration: Pre-encoding standard EPC sequences or bulk data writing into the 512-bit User Memory.
- Memory Lockout: Chip encryption, access password programming, and permanent memory lock settings to secure tag data in open supply chains.
Custom Form Factors & Roll Geometries
| Feature | Specification Options |
|---|---|
| Die-Cut Geometries | Custom label dimensions, specialized shapes, and precision sensor notches |
| Roll Cores | Standard 1.5" (38mm) or 3" (76mm) inner cores compatible with Zebra, TSC, and Sato thermal transfer printers |
| Substrates & Backings | High-tack pressure-sensitive acrylic adhesives, clear PET wet inlays, or anti-metal foam layers |
Share form factor, pre-encoding scope, and volume targets for uhf rfid tag alien h3 9645 builds—Contact JN RFID with RFID reader model, surface photos, and sample test results.
Asset Tracking & Inventory Management Applications
The Alien Higgs 3 IC delivers extended reading distance, 512-bit user memory, and durable face stocks for high-volume asset tracking and inventory management.

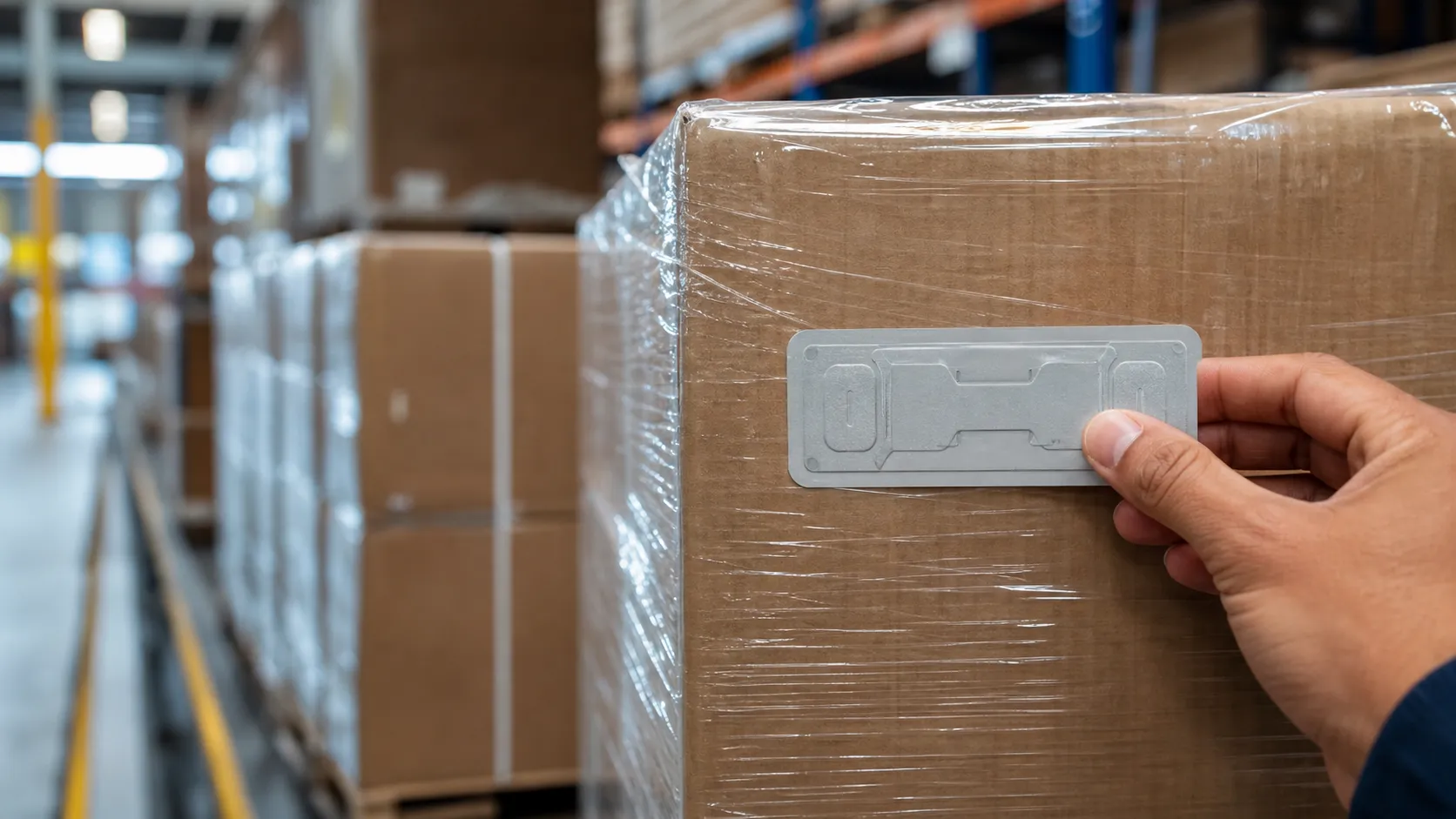

Supply Chain & Logistics Tracking
High-speed logistics demand fast, accurate scans without line-of-sight requirements. The ALN-9645 RFID inlay design to read reliably when items move past dock door portal readers at high speeds.
- Pallet & Carton Auditing: Track stacked master cartons and full pallet loads automatically during inbound and outbound staging.
- Shipping Containers: Secure real-time item visibility across multi-stage freight transportation networks.
- Cross-Dock Operations: Speed up transfer times and eliminate manual barcode scanning bottlenecks.
Retail & Item-Level Inventory Management
Maintaining accurate inventory counts in fast-paced retail environments prevents stockouts and shrink. Using EPC Gen 2 Class 1 Gen 2, printable RFID sticker and RFID label stocks allow fast cycle counts across wide store layouts.
- Apparel & Footwear: Attach tags directly to hangtags or care labels for instant inventory updates.
- Consumer Electronics: Read multiple tagged boxes inside tight storage shelves without opening packages.
- High-Volume FMCG: Audit high-turnover consumer goods on stockroom shelves in seconds.
Enterprise Asset Tracking
Losing track of capital assets, IT hardware, and specialized equipment costs time and money. The Alien Higgs 3 chip to maintain tight control over corporate resources.
- IT Infrastructure: Track servers, laptops, and networking hardware across enterprise data centers.
- Industrial Tools: Combine the tag with anti-metal backings to monitor high-value machinery and tooling.
- Service & Maintenance: Store maintenance records and serial numbers directly inside the onboard 512-bit user memory.
Vehicle & Gate Access Control
For automated gate systems and parking facilities, long read distances and fast response times are non-negotiable. Operating within the global 860-960 MHz band, these tags give drivers seamless hands-free entry.
- Windshield Access Labels: Provide consistent read rates through automotive glass for secure facility access.
- Fleet & Yard Operations: Track commercial trucks, trailers, and rental vehicles entering and leaving gates.
Deployment Performance Summary
| Application Field | Operational Challenge | UHF RFID Tag Alien H3 9645 Advantage |
|---|---|---|
| Supply Chain | Bulk scanning at portals | Superior anti-collision handling for dense tag clusters |
| Retail Inventory | Dense item packing | High-sensitivity antenna layout for reliable close-range reads |
| Enterprise Assets | Harsh physical environments | Rugged material options, wet inlay, and protective film faces |
| Access Control | Fast-moving targets | Extended line-of-sight read range up to 10 meters |
Factory Quality Assurance for Passive UHF Inlays
Every batch of uhf rfid tag alien h3 9645 is built to strict engineering standards, guaranteeing consistent RF performance across large-scale deployments. In-house manufacturing supplies reliable passive RFID inlays to integrators and distributors.
ISO 9001:2015 Cleanroom Manufacturing
ISO 9001:2015 production lines use automated flip-chip bonding and cleanroom assembly:
- Advanced Flip-Chip Bonding: Automated thermal compression attaches authentic Alien Higgs 3 ICs to etched aluminum RFID antenna layouts.
- Cleanroom Environment: Dust-controlled assembly protects inlay integrity and chip attachment.
Global Compliance Standards
Every batch meets international environmental and frequency regulations:
- FCC & CE Certified: Tuned for global 860-960 MHz deployment.
- RoHS & REACH Compliant: Non-toxic adhesives and substrates.
- Standard Conformance: EPC Gen 2 and ISO 18000-6C compatible.
100% Pre-Shipment Testing Protocol
Zero-defect quality control runs from raw materials to final packaging:
| Production Stage | Quality Inspection Method | Focus Area |
|---|---|---|
| Wafer Incoming Quality | Automated wafer probe testing | Verifying silicon performance and chip memory |
| In-Line Production | Machine vision optical alignment | Detecting antenna micro-fractures and bonding alignment |
| Packaging | 100% RF resonance & read testing | Validating frequency tuning, memory read/write, and tag responsiveness |
This rigorous testing ensures every uhf rfid tag alien h3 9645 arrives ready for immediate encoding and field deployment.
Ordering Guidelines & Sample Evaluation
Procurement covers sample evaluation through volume rolls with authentic Higgs-3 ICs and direct factory pricing.

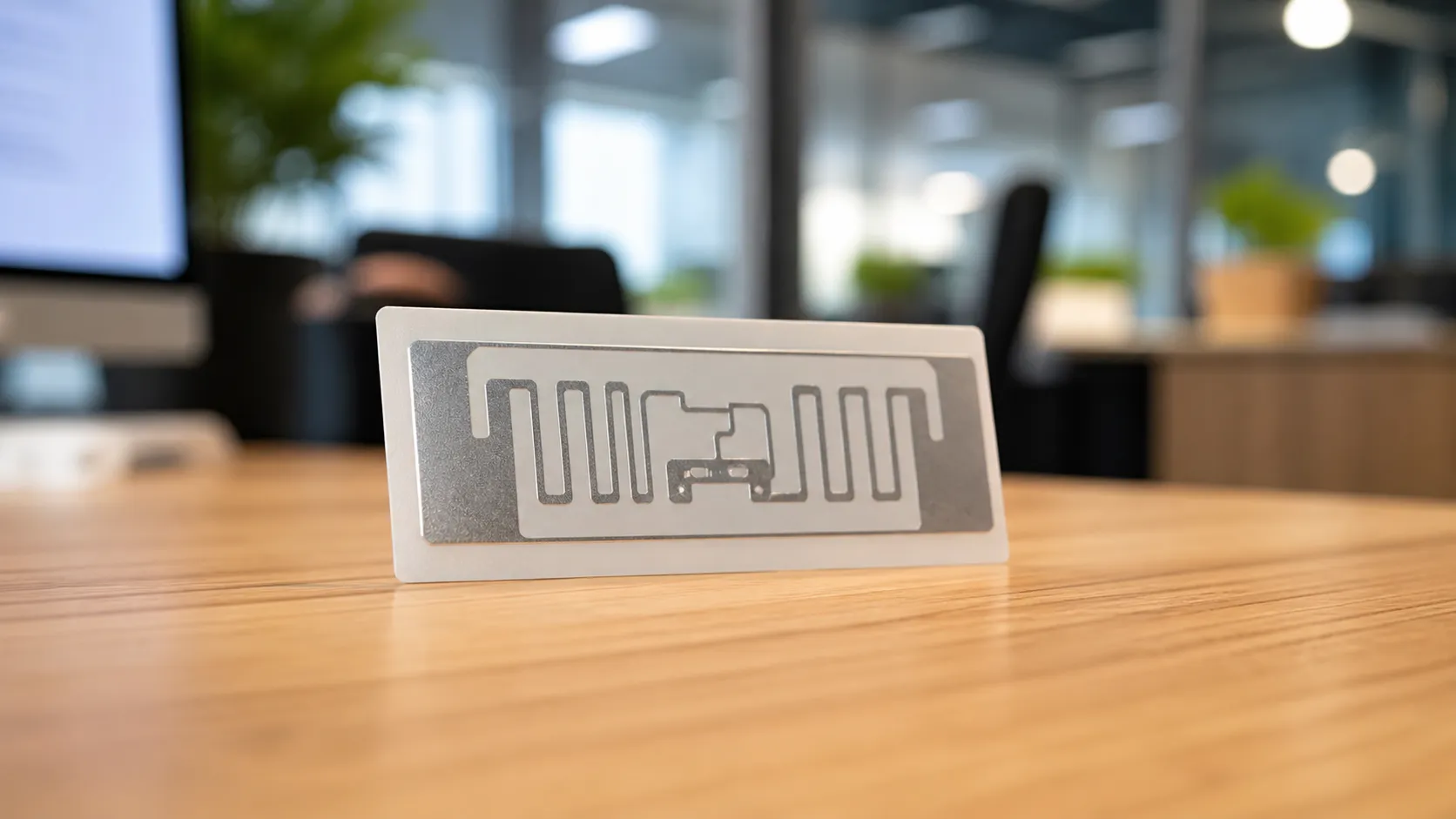

Sample Evaluation Policy
- Complimentary Stock Samples: Free sample packs of our UHF RFID tag Alien H3 9645 (including dry inlay, wet inlay, and thermal-printable sticker options) are available for qualified B2B engineering teams.
- In-Field Verification: Test read ranges, antenna sensitivity, and surface adhesives in your actual deployment environment before committing to bulk production.
Minimum Order Quantities (MOQ)
| Order Type | Minimum Quantity | Application |
|---|---|---|
| Standard Inlays & Labels | 1,000 units | Pilot testing, small facility rollouts, inventory trials |
| Custom OEM / ODM Projects | Case-by-case basis | Custom die-cut shapes, specialized face stocks, pre-encoding |
Production & Delivery Timelines
- Prototyping & Custom Proofing: 5–7 business days
- Volume Factory Export: 2–4 weeks for fulfillment and delivery
- Packaging: Standard bulk roll packaging compatible with commercial thermal transfer label printers (Zebra, TSC, Sato) and automated converters
Request a 24-Hour Engineering Quote
Submit your project specs, volume requirements, and pre-encoding data needs. Technical teams review every order requirement and guarantees a direct factory quote within 24 hours.
UHF RFID Tag Alien H3 9645 FAQs
What is the maximum read distance of the Alien H3 9645 tag?
Under optimal line-of-sight conditions, the uhf rfid tag alien h3 9645 achieves a read distance of 6 to 10 meters (20 to 33 feet) using a standard fixed RFID reader operating at 4W EIRP.
Actual reading distance depends on environment factors:
- Reader Output Power & Antenna Gain: Higher-gain RFID reader antennas extend effective range.
- Tag Orientation: Polarization match with the ALN-9645 inlay maximizes performance.
- Mounting Surface: Use anti-metal foam on metallic assets to avoid detuning.
What is the difference between dry inlay, wet inlay, and printable RFID labels?
Three primary form factors to fit your specific conversion or deployment requirements:
| Form Factor | Structural Layers | Ideal Application |
|---|---|---|
| UHF Dry Inlay | Aluminum antenna + Alien Higgs 3 IC + PET substrate (No adhesive) | Roll-to-roll tag converters and smart card lamination. |
| UHF Wet Inlay | Dry inlay + High-tack pressure-sensitive acrylic adhesive + Clear PET liner | Direct surface attachment or insertion into asset housings. |
| Printable RFID Label | Wet inlay + Thermal transfer face stock (Paper/PET) + Die-cut release liner | On-demand surface printing with Zebra, TSC, or Sato RFID printers. |
Can JN RFID pre-encode custom EPC data and print barcodes before shipping?
Yes. Factory customization covers pre-encoding and variable print:
- Custom Pre-Encoding: Sequential EPC, user memory writes, and access locks on Alien Higgs 3 blocks.
- Variable Data Printing: Matching barcodes, QR codes, and logos on face stock.
- Data Verification: 100% database verification before shipment.
How does the Alien Higgs-3 IC compare with other UHF RFID chips?
The Alien Higgs-3 chip remains a top industry standard for high-capacity memory applications fully compliant with EPCglobal Class 1 Gen 2 and ISO 18000-6C standards.
| Feature | Alien Higgs-3 (H3) | Standard Entry-Level UHF Chips |
|---|---|---|
| User Memory | 512 Bits (High capacity for local logging) | 0 to 128 Bits |
| EPC Memory | 96 to 480 Bits (Scalable allocation) | 96 to 128 Bits |
| Data Retention | 50 Years | 20 to 30 Years |
| Write Durability | 100,000 Cycles | 10,000 to 100,000 Cycles |
