Gen 2 UHF 902-928 MHz RFID Tags — On-Metal FCC Band

Gen 2 uhf 902-928 mhz rfid tags are FCC ISM band passive rfid tag builds for portal asset tracking at 902–928 MHz.

Protocol

ISO/IEC 18000-6C · RAIN RFID · EPC Class 1 Gen 2

Read range

Long read range typically 1–15+ m with matched reader and antenna geometry

Need a broader Gen 2 catalog beyond on-metal FCC-tuned builds? Compare the Gen 2 UHF RFID tags hub before specifying inlay geometry for your reader fleet.

Gen 2 UHF 902-928 MHz RFID Tags — Technical Specifications

FCC-band gen 2 uhf 902-928 mhz rfid tags eliminate detuning and unverified IC risk across complex industrial environments with genuine silicon, tuned rfid antenna geometry, and inline validation before shipment.

FCC Spectrum Optimization & Protocol Compliance

Passive UHF rfid transponder builds operate in the 902–928 MHz ISM band under FCC spectrum rules. ISO/IEC 18000-6C compliant tags follow the epc global standard EPC Class 1 Gen 2 architecture and sync with fixed or handheld rfid interrogator hardware.

Technical Specification Architecture

Silicon Chips & Read Range Optimization

Genuine IC silicon maintains high sensitivity and reliable anti-collision performance when rfid reader portals energize dense tag populations with electromagnetic waves in the UHF band.

• High-Grade IC Architecture: Built using authentic Impinj Monza R6 / M700 ICs and Alien Higgs series chips for rapid RF response and long-term data retention.
• Structured Memory Allocation: Features up to 128-bit EPC memory for high-speed stock sweeps, paired with up to 512-bit user memory for localized asset data tracking.
• Long Read Range Performance: Delivers flexible field ranges spanning 1 to 15+ meters, controlled by tuned RFID antenna geometry, enclosure style, and reader output.

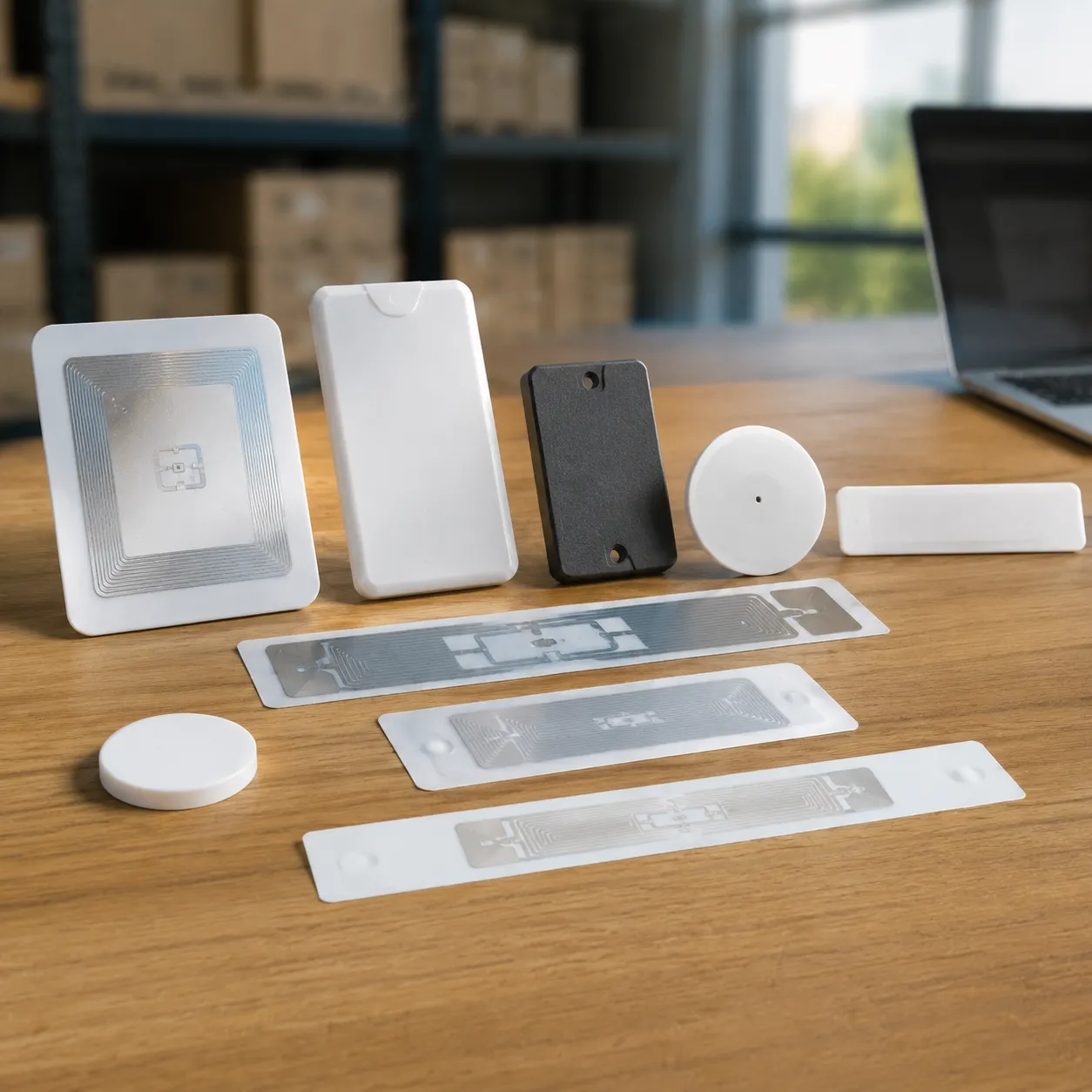

Form Factors for Gen 2 UHF 902-928 MHz RFID Tags

Specialized form factors maximize read performance across corrugated, metal, polybag, and outdoor surfaces for uhf 902-928 mhz rfid tags deployments.

Printable RFID Wet Inlays & Labels

For high-volume carton and item-level tracking, thin, flexible printable RFID wet inlays and
asset tracking RFID stickers support item-level programs:

• Face Materials: Thermal transfer printable PET or premium face paper.
• Adhesives: High-tack permanent acrylic adhesives engineered for corrugated boxes, plastic totes, and polybags.
• Printer Compatibility: Delivered on standard 3-inch cores for seamless feeding through RFID printer-encoders.

Mount-on-Metal RFID Labels & Hard Tags

Metal surfaces cause RF detuning on standard transponders. Targeted electromagnetic shielding restores
long read range on steel assets—see dedicated
UHF RFID tags for metal containers for container-grade tuning.

• Flexible Anti-Metal Labels: Built with synthetic ferrite or foam-backed spacer layers that isolate the antenna from metal containers, pipes, and IT gear.
• Anti-Metal Ceramic RFID Transponders: Compact, rigid ceramic and ABS enclosures designed for tight spaces, server rack chassis, and heavy industrial machinery.

Heavy-Duty IP68 Hard RFID Tags

Heavy-duty IP68 hard RFID tags survive severe outdoor environments, high-pressure washdowns, and aggressive chemical exposure.

• Protection Ratings: IP68 and IP69K fully encapsulated housings stop water, oil, and dust ingress.
• Thermal Endurance: Custom high-temperature RFID badges engineered to survive high-heat industrial paint lines and thermal sterilization cycles up to 230°C (446°F).
• Impact Resistance: Heavy-wall ABS, PC, or vulcanized rubber casings absorb physical shocks and high vibrations in construction and logistics yards.

Specialty Form Factors & Secure Transponders

For non-standard asset tracking requirements, specialized physical constructions include:

• Tamper-Evident Seals: Antenna structures fracture instantly upon attempted removal, preventing unauthorized tag transfer or fraud on high-value equipment.
• Hanging Tags & Wristbands: Heavy-duty zip-tie cable tags for returnable transport items (RTIs) and durable silicone wristbands for personnel tracking.

Target Applications for Gen 2 UHF 902-928 MHz RFID Tags

Industrial deployments rely on stable read rates and long read range across portals, conveyors, and handheld inventory tracking sweeps.

Supply Chain Management & Warehouse Logistics

• Bulk Pallet & Container Tracking: Scan hundreds of passive UHF asset tags simultaneously through dock door portal readers for end-to-end supply chain management visibility without manual line-of-sight.
• High-Speed Routing: Identify totes, cartons, and returnable transport items (RTIs) on automated conveyor systems in real time.

IT & Capital Asset Tracking

• Server Racks & Hardware: Deploy mount-on-metal RFID labels on server blades, network switches, and patch panels without RF signal detuning.
• Tool & Equipment Audit: Secure anti-metal ceramic RFID transponders onto high-value tools and industrial machinery to prevent loss.

Retail & Inventory Management

• High-Density Inventory Sweeps: Perform rapid stock counts using handheld RFID interrogator devices to maintain 99%+ inventory accuracy.
• Automated Loss Prevention: Integrate printable RFID wet inlays into item-level packaging for automated stock sweeps and shrink control.

Industrial Manufacturing & Work-in-Progress (WIP)

• High-Heat Production Lines: Track sub-assemblies through paint booths and thermal curing processes using heavy-duty IP68 hard RFID tags.
• Harsh Chemical & Outdoor Traceability: Maintain continuous visibility of parts exposed to oil, solvents, and intense mechanical vibration.

Industrial Application Summary

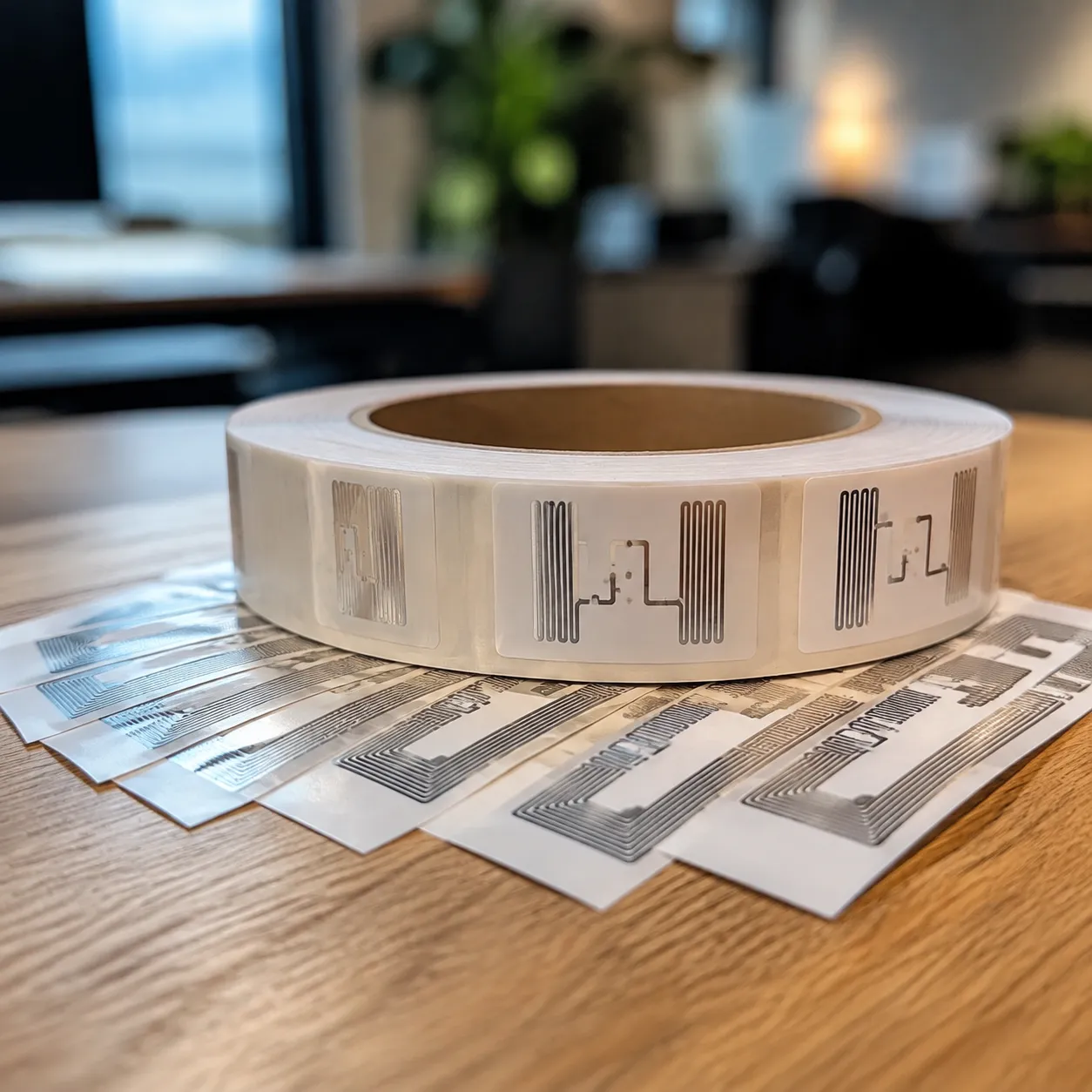

Custom OEM/ODM Services for Gen 2 UHF 902-928 MHz RFID Tags

Custom gen 2 uhf 902-928 mhz rfid tags match operational workflows with tailored rfid antenna geometry and synced visual plus electronic encoding for rapid field deployment.

Factory Pre-Encoding & Custom Hardware

• Data Synchronization: Every variable data encoded tag is verified against your master database for visual-to-digital alignment between printed barcodes and EPC chip data.
• Security & Access Control: Custom access passwords and hard-locked memory banks ship pre-programmed to prevent unauthorized data tampering.
• Tailored Form Factors: Custom-sized RAIN RFID transponders fit tight asset footprints without sacrificing read performance across the 902–928 MHz band.

Quality Assurance for Gen 2 UHF 902-928 MHz RFID Tags

Inline read/write validation and automated purging eliminate dead-on-arrival passive rfid tag risk before cartons leave the factory floor.

High-Precision Production Lines

Automated production lines bond ICs and etch rfid antenna patterns for structural accuracy across every RAIN RFID batch:

• High-Precision Flip-Chip Bonding: Delivers micro-level IC attachment accuracy for long-term mechanical and electrical stability.
• Ultrasonic Copper Wire-Embedding: Ensures exact antenna geometry optimized for the FCC ISM band (902–928 MHz).

100% Pre-Shipment Field Verification

• Inline Electronic Validation: Every transponder undergoes automated high-speed read/write testing on the assembly line.
• Automated Purging: Substandard tags are automatically flagged and discarded inline, guaranteeing 100% functional yield when your order arrives.

Factory Certifications & Standard Compliance

Request a Quote

Share tag form factor (wet inlay, on-metal label, IP68 hard tag), IC preference (Impinj Monza / Alien Higgs), encoding scope, and target
long read range for a configured gen 2 uhf 902-928 mhz rfid tags proposal with MOQ and lead time.

Contact JN RFID with substrate photos, portal reader model, and pilot quantity for FCC-band
passive rfid tag samples.

Frequently Asked Questions About Gen 2 UHF 902-928 MHz RFID Tags

Why is the 902–928 MHz band used for Gen 2 UHF RFID in the Americas?

The 902–928 MHz allocation is an unlicensed ISM band reserved for industrial RF applications. FCC-class
gen 2 uhf 902-928 mhz rfid tags emit low-power electromagnetic waves that rfid reader and
rfid interrogator systems decode under the epc global standard Class 1 Gen 2 protocol, enabling bulk portal reads
for supply chain management without line-of-sight barcodes.

How do reader, antenna, and tag choices affect long read range?

Long read range depends on rfid reader output power, rfid antenna gain and polarization, tag IC sensitivity,
and mounting surface. Passive FCC-band rfid transponder builds typically achieve roughly 1–15+ meters in open air; on-metal labels require
ferrite isolation. For field expectations by environment, see
passive UHF RFID tag range guidance before finalizing inlay size.

Are temperature-sensor Gen 2 UHF tags available in the 902–928 MHz band?

Yes. Select IC and inlay stacks support embedded temperature sensor logging on passive rfid tag platforms that remain
ISO/IEC 18000-6C compliant. Sensor-enabled uhf 902-928 mhz rfid tags suit cold-chain totes, sterilization racks, and industrial ovens where
inventory tracking must include thermal excursion data without a separate logger.

What is the difference between RAIN RFID and EPC Gen 2?

RAIN RFID is the industry alliance branding for UHF passive systems built on the epc global standard air interface (EPC Class 1 Gen 2 /
ISO/IEC 18000-6C). Functionally, compliant gen 2 uhf 902-928 mhz rfid tags interoperate with standard fixed and handheld
rfid interrogator hardware from major vendors when memory banks and encoding rules align.

Gen 2 UHF 902-928 MHz RFID Tags Ordering Guide

Factory-direct B2B procurement keeps Gen 2 UHF 902-928 MHz RFID tags deployments on schedule with clear MOQ, sample, and production lead-time tiers.

B2B Fulfillment Details

• Flexible Minimum Orders: Enterprise rollouts start at a 1,000-unit minimum for standard FCC-band uhf 902-928 mhz rfid tags or scale to multi-million-unit production runs.
• Risk-Free Field Testing: Free sample packs with RAIN RFID transponders and printable wet inlays validate long read range in your portal layout before full PO release.
• Fast Engineering & Delivery: Custom prototype designs ship within 5 to 7 business days; full-scale production typically delivers in 2 to 4 weeks.
