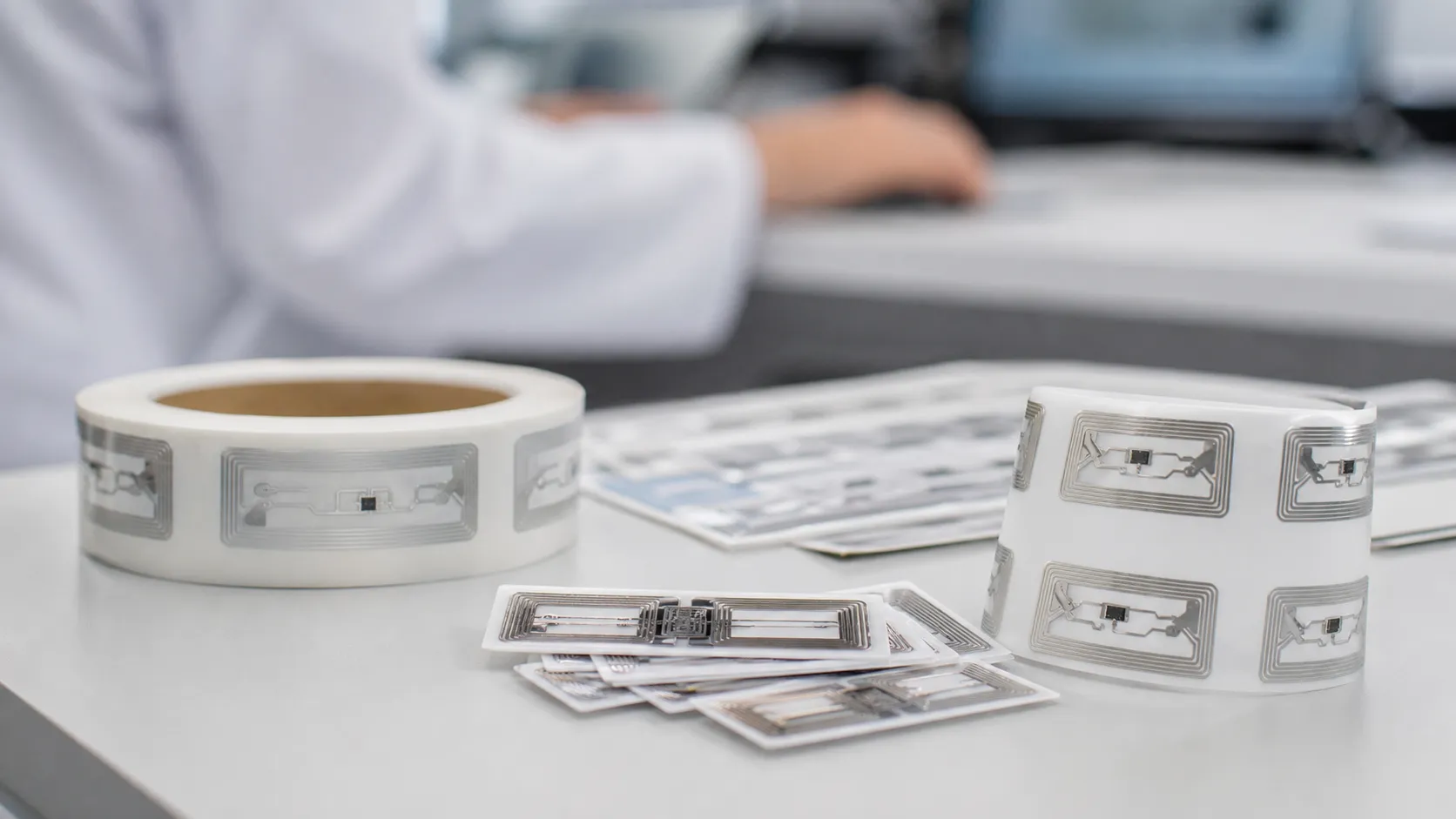

Micro UHF Custom RFID Tags for Metal and High Heat

Micro uhf custom rfid tags combine sub-centimeter compact size with tuned on-metal tracking for assets that exceed label temperature or recess limits.

Who needs metal-and-heat micro tags? OEM teams mounting anti-metal electronic tag inlays on tools, PCB panels, and sterilization trays where standard UHF labels fail.

What matters first? Substrate class (FR-4 PCB material vs ceramic), peak high temperature resistance, and validated read range on your metal surface before locking MOQ.

Micro UHF Custom RFID Tags: Key Features

Sub-centimeter micro uhf custom rfid tags target recess mounts where labels fail under heat, chemicals, or metal detuning.

High-Performance Micro Transponders

We engineer our miniature UHF RFID tags to deliver high-density performance without sacrificing read range.

• Global Band Compliance: Fully operational across global UHF frequencies (860–960 MHz) with frequency hopping per RAIN RFID Class 1 Gen 2 air interface.
• Optimized RF Design: Advanced chip-and-antenna matching balances sub-centimeter form factors with consistent read distances reaching up to several meters.
• Bulk Scan Capability: Enables rapid inventory management, warehouse management, and supply chain automation with bulk identification in dense tag deployments.

Rugged Encapsulation & Surface Mounting

Whether you are mounting directly on metal tools or passing instruments through autoclave sterilization cycles, our compact RAIN RFID tags are built to survive extreme environments.

Feature	Capabilities & Options
Housing Materials	Heavy-duty FR-4 PCB material, high-temp ceramics, durable PPS, and flexible miniature inlays.
Extreme Resistance	Handles heat exposure up to 250°C (482°F), intense chemical washdowns, and repeated autoclave cycles.
On-Metal Mounting	Integrated anti-metal electronic tag backing layers eliminate detuning, enabling direct installation on metal assets.

From circuit board manufacturing to medical tray tracking, our custom micro RFID tags give you complete visibility over your smallest, highest-value assets.

Technical Specifications for Micro UHF Custom RFID Tags

We engineer our micro UHF custom RFID tags to deliver relentless performance in the smallest possible form factors. Here is how our hardware specs stack up:

Parameter	Specification Details
Operating Frequency	Global UHF 860–960 MHz (RAIN RFID / ISO 18000-63)
Silicon / IC Family	Genuine Impinj® (M730/M750/E series), Alien® Higgs®, NXP® UCODE®
Memory Configuration	EPC 96–480 bits
Read Distance	Up to 1.5m–5m (varies by chip type, antenna design, and surface)
Dimensions	Fully custom micro-footprints starting at 2.6 × 2.6 mm up to micro-strips
Base Substrates	Ceramic, FR-4 PCB, Molded Epoxy, Flexible PET/PI, High-Temp PPS
Operating Temperature	Standard: -40°F to +185°F (-40°C to +85°C) High-Temp Series: Up to +482°F (+250°C) peak
IP Rating	IP67 / IP68 / IP69K (fully sealed hermetic enclosures)
Attachment Methods	Industrial 3M adhesives (3M VHB, 467MP, 9469), press-fit, or resin epoxy embed
Compliance & Standards	ISO 9001:2015, CE, FCC, RoHS, REACH compliant

Built for Peak Performance in Micro Footprints

• Ultra-small passive RFID transponder chips: We pair top-tier silicon with custom micro-antennas to maximize read range without sacrificing space.
• On-metal micro RFID tag designs: Embedded anti-metal shielding supports on-metal tracking on dense metallic assets.
• Extreme environment durability: Rugged IP68/IP69K housings withstand autoclave sterilization cycles, aggressive chemical washes, and high-heat paint lines.

Industrial Applications — On-Metal & High-Heat Asset Tracking

Miniature tags support asset tracking, inventory management, and line-side ID in harsh environments:

Surgical Instrument & Healthcare Tracking

• Sterilization-Ready: Micro ceramic and FR-4 PCB tags easily endure harsh autoclave sterilization and aggressive chemical washdowns.
• Precision Tracking: Track tiny medical instruments, trays, and surgical tools throughout their entire lifecycle without interfering with medical staff.

PCB & Electronics Assembly Tracking

• Embedded Quality Control: Ultra-small FR-4 PCB micro RFID tags integrate directly onto circuit boards or inside tight electronic housings.
• Traceability: Maintain continuous component-level asset tracking and build history from the factory floor to field service.

Tool & Equipment Asset Management

• On-Metal Performance: Hardened micro-on-metal tags mount seamlessly to power tools, calibrated instruments, and heavy machinery.
• Loss Prevention: Prevent asset loss, streamline check-in/check-out, and maintain accurate inventory management in real time.

Industrial Manufacturing & Heat-Treatment Processing

• Extreme Heat Resistance: Built to handle heat exposure up to 250°C during paint shop baking lines and industrial thermal processing.
• Rugged Encapsulation: Tough outer housings withstand industrial impacts, oil, grit, and harsh chemical exposure on active production lines.

Retail, Warehouse & Supply Chain Automation

• Compact item ID: Micro inlays on high-value components support retail item tracking and serialized SKU verification at pack stations.
• Portal lanes: Fixed readers enable warehouse management and carton-level supply chain automation without line-of-sight scans.
• On-metal assets: Ceramic and FR-4 PCB material builds maintain read range on metal racks, totes, and returnable transport units.

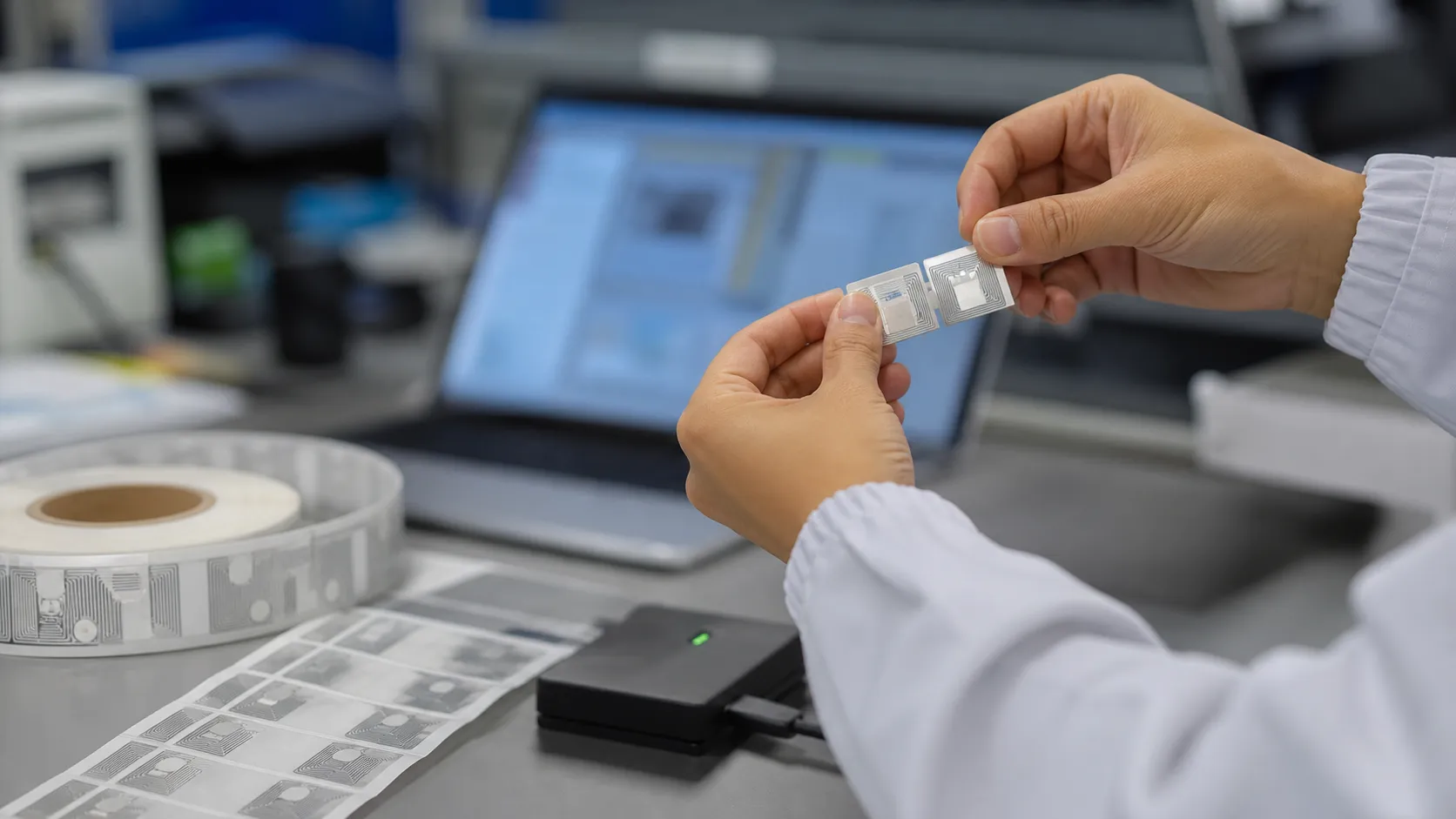

OEM Customization — Antenna Tuning, Marking & Encoding

OEM builds tune substrates, antennas, and encoding to your housing and reader fleet:

Custom Sizing & Housing Materials

We scale tag dimensions to fit tight physical footprints, down to 2.6×2.6 mm. Choose the right enclosure based on your operational conditions:

Housing Material	Best Used For	Key Advantage
Ceramic	Small tool tracking & medical devices	Heat resistant & ultra-compact
FR-4 PCB Material	Electronics assembly & circuit boards	High durability & low profile
Flexible PET/PI	Curved surfaces & thin assets	Lightweight & cost-effective
Molded Epoxy	Heavy industrial equipment	Waterproof & impact resistant
High-Temp Polymers	Paint shops & heat treatment	Withstands thermal exposure

Antenna Design & Fine-Tuning

• Bespoke Mini-Antenna Layouts: Engineered specifically for your target substrate.
• Substrate Optimization: Fine-tuned to maintain optimal read rates on metal, plastic, glass, and liquid containers.
• Detuning Prevention: Customized RF tuning ensures stable performance even on high-interference surfaces.

Variable Data Printing & Encoding

• High-Resolution Laser Engraving: Mark tags with human-readable text, serialized 1D/2D QR barcodes, and custom company logos.
• Pre-Encoding Services: We handle EPC memory programming, custom user memory lock settings, and database matching before shipping. Protocol reference: Gen 2 UHF RFID tags.

Adhesive & Mounting Options

• High-Tack 3M Adhesives: Choose from 3M 467MP, 3M 9469, or 3M VHB for extreme hold.
• Mechanical & Permanent Fixings: Options for resin potting, rivets, or surface-embedding channels to suit any asset layout.

Precision Manufacturing & Authentic Silicon Assurance

Inline RF validation and traceability cover every micro tag batch before export:

Authentic Silicon Assurance

We never compromise on performance. We build our micro RFID tags using 100% genuine wafers sourced directly from trusted leaders:
Impinj® (M730, M750, and E-family chips)
NXP® (UCODE® series)
Alien® (Higgs® series)

Automated Cleanroom Assembly

Our cleanroom production facilities use high-speed flip-chip bonding units and automated ultrasonic copper wire embedding. This guarantees structural consistency, tight tolerances, and high reliability across every batch.

100% Pre-Shipment Read/Write Testing

Zero defects are our baseline. Every durable transponder undergoes automated high-speed testing across target frequencies before packing. We verify read/write functions to ensure instant, reliable performance in your environment.

Manufacturing Feature	Our Precision Standard	Your Business Benefit
Sourcing	Direct OEM factory access	Lower unit costs & direct engineering help
IC Wafers	100% authentic Impinj/NXP/Alien silicon	Maximum chip sensitivity & data retention
Assembly	Automated cleanroom flip-chip bonding	Consistent durability in harsh conditions
Quality Check	Full automated RF read/write validation	Zero-defect shipments guaranteed

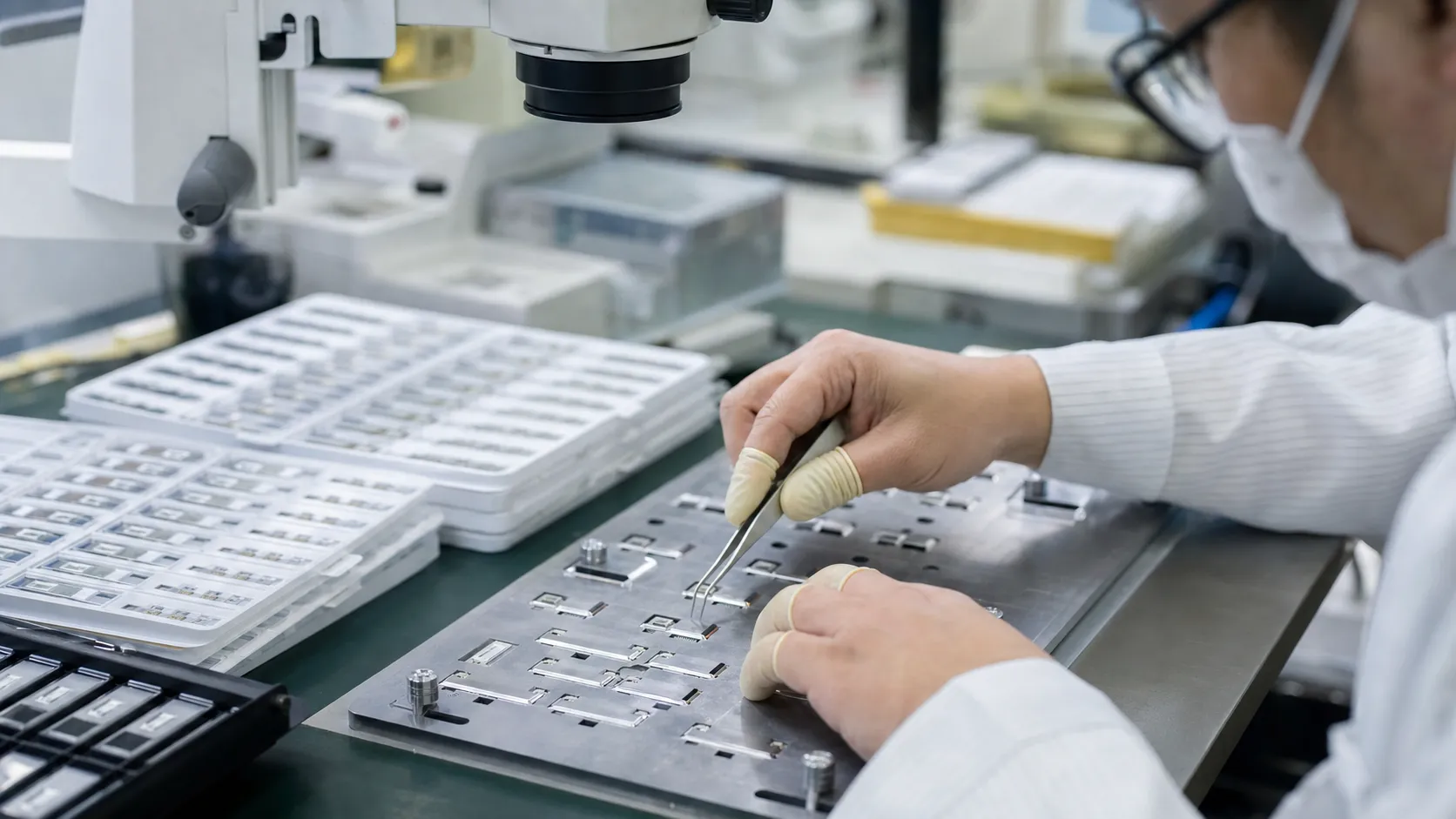

5-Step Custom OEM/ODM Production Process

OEM/ODM workflow from RF analysis through mass production:

Step 1: Technical Requirement Analysis

We evaluate your specific deployment environment before setting up production:
RF Environment Review: Analyzing surrounding metals, liquids, and interference levels.
Substrate Selection: Matching housing materials (Ceramic, FR-4 PCB, PPS) to physical demands.
Dimensions & Chip Specs: Fitting tight spatial constraints with top-tier chips like Impinj M730/M750 or NXP UCODE.

Step 2: CAD Design & Antenna Prototyping

Our engineers build custom mini-antenna layouts designed to maximize performance in small footprints:
Simulation: Modeling RF performance against target mounting surfaces.
Engineering Layout: Customizing trace geometry to lock in target frequencies (860–960 MHz).

Step 3: Fast-Track Sample Creation & Testing

We validate real-world performance before launching full production:
Quick Turnaround: Sample delivery in just 5–7 business days.
Validation: On-site testing for read range, high temperature resistance, and tuning accuracy.

Step 4: Precision Mass Production

Our automated facilities ensure consistent quality for every micro UHF custom RFID tag:
Cleanroom Bonding: High-speed flip-chip bonding and ultrasonic copper embedding.
Finishing: High-resolution laser marking, substrate lamination, and precision die-cutting.

Step 5: 100% QA Inspection & Fast Logistics

Every batch undergoes strict quality control before shipping directly to your facility:

Inspection & Logistics Stage	Key Action / Standard
Resonance Verification	100% automated read/write testing across target frequency bands.
Protective Packaging	Anti-static ESD shield packaging for safe transit.
Global Delivery	Worldwide express air or sea freight with end-to-end tracking.

How to Select Micro UHF Custom RFID Tags

Match chip, substrate, and antenna tuning to mounting surface and reader fleet before bulk orders:

• Surface class: Ceramic or FR-4 PCB material for direct metal vs flexible PET for curved plastics.
• Heat rating: Standard -40°C to +85°C vs high-temp series to +250°C peak for paint lines and autoclave cycles.
• Size vs range: Smaller footprints trade meters of read range for recess fit—validate with your fixed portal at production power.
• Encoding: Sequential EPC, GS1 SGTIN-96, or locked user memory with serialized bar codes laser-marked on housing.
• Density: For tray-level bulk identification, confirm tag spacing against
  minimum spacing for UHF RFID tags on metal guidance.

Compare larger on-metal builds via
RFID UHF metal tags
when recess depth allows a thicker antenna stack.

B2B Ordering & Procurement FAQ

Common procurement questions for micro uhf custom rfid tags:

Frequently Asked Questions

• What is the minimum order quantity (MOQ)?
  Our flexible MOQs start between 1,000 and 5,000 units. Exact numbers depend on your material choice, custom tooling requirements, and batch setup.
• How does a small footprint impact read range?
  Smaller antennas naturally have shorter ranges due to RF physics. We balance this by using high-sensitivity chips like Impinj M730 and specialized antenna designs, giving you reliable read performance up to several meters despite the ultra-small size.
• Can these tags mount directly on metal surfaces?
  Yes. We build specialized on-metal micro RFID tags using ceramic bases, FR-4 PCB materials, and anti-metal isolation layers to prevent metallic signal detuning.
• What variable data options can be customized?
  We offer high-resolution laser-etched serial numbers, 2D QR codes, pre-encoded EPC memory banks, and custom chip locking services right off the production line.

Procurement & Delivery Specs

Requirement	Standard Specification
MOQ	1,000 – 5,000 units (based on design)
Tech Response Time	Within 24 hours
Sample Lead Time	5–7 business days
Mass Production Time	2–4 weeks
Custom Encoding	EPC memory, user lock, serialized bar codes

Can micro tags support warehouse bulk identification?

Yes. Tuned micro antennas and reader anti-collision settings enable stable bulk identification
in tool trays and component bins. Confirm regional frequency licensing and test with your fixed portal at production power levels.

Share substrate type, peak temperature, target read range, and annual volume for configured micro uhf custom rfid tags—Contact JN RFID with asset photos, reader model, and on-metal spacing from your portal layout.
