Overview
Micro uhf custom rfid tags pair sub-centimeter housings with passive Gen2 silicon across 860-960 MHz for on-metal asset ID where standard labels cannot fit.
- Footprint: Ceramic, FR4 PCB, and flexible inlays from 3 mm with tuned reading distance on metal and non-metal substrates.
- Protocol: ISO standard RAIN RFID Class 1 Gen 2 with factory data capture, EPC pre-encoding, and user-memory options.
- Deployment: Tool trays, PCB assemblies, and portal lanes needing multiple tags reading without line-of-sight manual scans.
Technical Specifications for Micro UHF Custom RFID Tags
Sub-centimeter micro uhf custom rfid tags target recess mounts and on-metal assets where standard labels cannot fit.
Physical Dimensions and Micro Form Factors
We engineer sub-centimeter form factors to fit minimal footprints.
- Ultra-Miniature Ceramic: Down to 3mm × 3mm × 2mm
- Compact PCB Tags: As small as 5mm × 3mm × 1mm

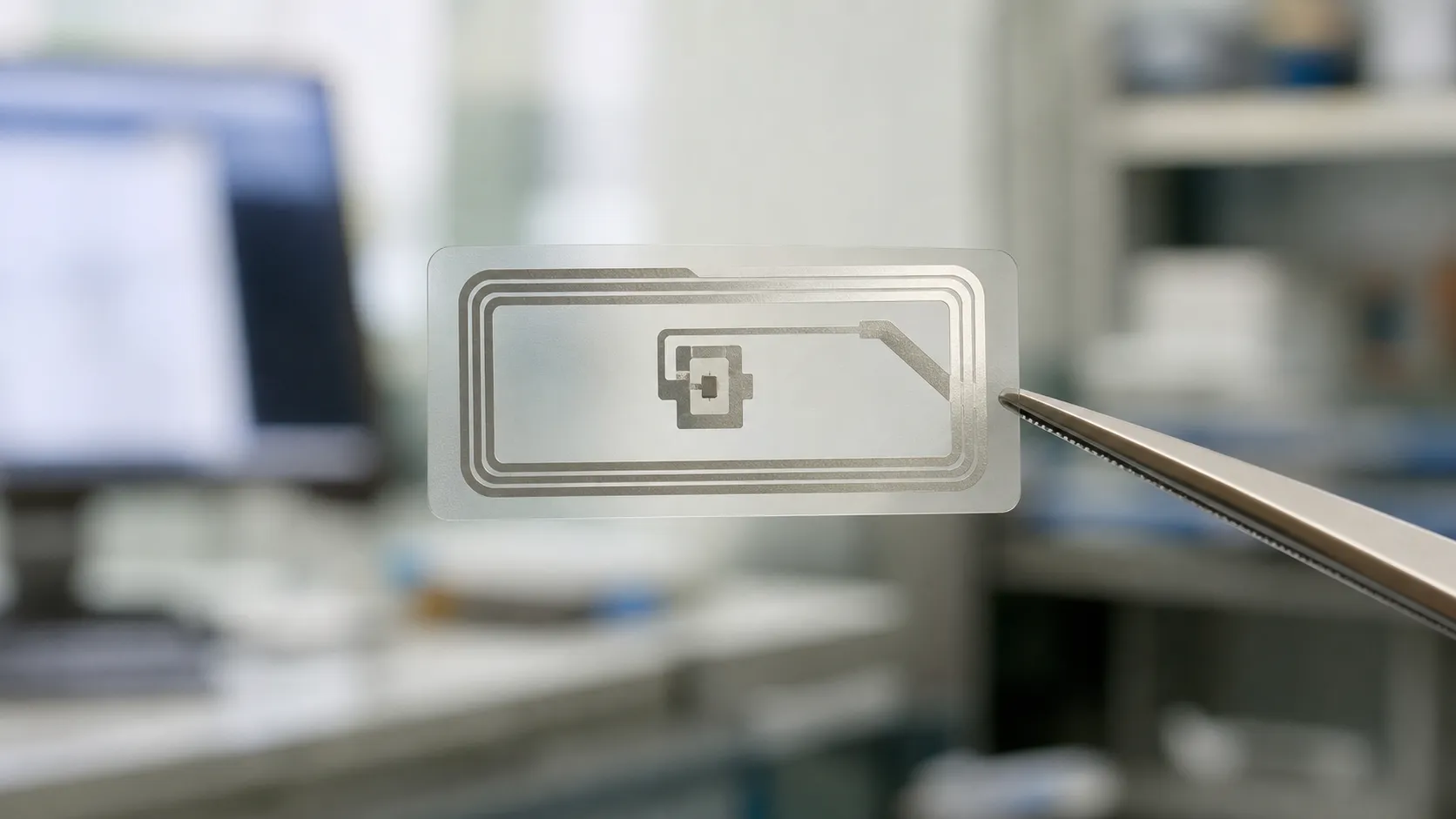

- Flexible Micro Inlays: Thicknesses starting under 0.2mm
Substrates and Available Materials
Choose the right housing based on your operating environment:
| Substrate Type | Key Feature | Common Application |
|---|---|---|
| FR4 PCB | High mechanical durability | Tool & industrial asset tracking |
| Ceramic | Heat & chemical resistant | On-metal micro tracking |
| PET / Polyimide | Flexible & ultra-thin | Asset labels & small packaging |
| TPU / Silicone / Epoxy | Flexible TPU material or rugged encapsulation | Harsh outdoor & medical gear |
Read Range Performance
Custom antenna tuning recovers extended read range versus untuned micro inlays on the same footprint.
Smaller antennas naturally mean shorter read distances, but our custom antenna tuning optimizes every millimeter.
- On-Metal Micro Tags: Up to 1.5 meters (5 feet)
- Non-Metal Surfaces: Up to 3 meters (10 feet)
- In-Metal Embedded: Up to 0.8 meters (2.5 feet)
Protocol Compliance and Memory Structures
Every tag uses authentic RAIN RFID silicon to guarantee full compatibility with standard industrial readers.
- Air Interface Protocol: ISO standard ISO/IEC 18000-63 and passive Gen2 EPCglobal Class 1 Gen 2 (V2)
- Operating Frequency: Global 860-960 MHz frequency range (RAIN RFID)
- Chip Options: Impinj Monza/M700 series, NXP UCODE series
- Memory Capacity: Up to 128-bit EPC plus 512-bit User Memory
High-Temperature and Waterproof IP Ratings
Our micro tags are built to handle intense wash cycles, sterilizations, and thermal stress.
- Waterproof Ratings: IP68 and IP69K (pressure washer safe)
- Operating Temperatures: -40°F to +185°F (-40°C to +85°C)
- High-Temp Resistance: Peak exposure up to +482°F (+250°C) for autoclave or industrial baking
Mounting and Adhesive Choices
Secure your micro UHF custom RFID tags to virtually any surface with tailored attachment methods:
- 3M High-Tack Adhesives: 3M 467MP, 3M 300LSE, or VHB foam tapes
- Mechanical Mounting: Screw holes, snap-in rivets, or cable tie slots
- Encapsulation: Epoxy potting or direct flush-mount embedding
OEM/ODM Customization — Antenna Tuning, Marking & Encoding
OEM and ODM builds tune antennas, substrates, and encoding to your housing and reader fleet:
Custom Antenna Tuning for On-Metal and Plastic Substrates
Standard tags lose performance when placed on challenging surfaces. We tune chip impedances and redesign micro antennas to leverage the dielectric properties of surrounding materials rather than being detuned by them.
- On-Metal Optimization: Custom ferrite layers and specialized antenna geometries maintain read distance on metallic equipment.
- Plastic & Composite Tuning: Impedance matching for ABS, polycarbonate, or high-density polymers.
- Miniaturized Footprints: Engineered to deliver max power transfer in spaces smaller than a dime.
Surface Printing and Laser Marking Options
We provide durable surface identification options to ensure high visibility and scannability even in harsh industrial environments.
| Marking Type | Durability | Best Suited For | Key Features |
|---|---|---|---|
| Fiber Laser Engraving | Permanent / Chemical Resistant | Metal Tags, PCBs, Ceramics | High contrast, zero ink wear, supports micro 2D DataMatrix |
| Thermal Transfer | Standard Industrial | Flexible Labels, PET Substrates | High-resolution barcodes, custom logos, serial numbers |
| Full-Color UV Printing | Scratch Resistant | Plastic Housing, Asset Labels | Brand colors, QR codes, crisp high-density text |
Data Pre-Encoding and Custom EPC Generation
Streamline deployment out of the box with our factory pre-encoding services. We align tag memory structures directly with your software architecture. Protocol reference: Gen 2 UHF RFID tags.
- Custom EPC Arrays: Sequential numbering, GS1 SGTIN-96 standard formatting, or custom hexadecimal schemas.
- User Memory Encoding: Lock critical asset metadata, inspection dates, or cryptographic keys directly onto the chip.
- Access & Kill Password Protection: Secure chip memory locks to prevent unauthorized data overwrites in the field.
Heavy-Duty 3M Adhesives and Anti-Metal Backings
Selecting the right backing ensures your miniature tracking chip stays bonded through heat, moisture, and mechanical stress.
- 3M 467MP / 468MP: Excellent resistance to solvents and high temperatures; ideal for smooth surfaces.
- 3M VHB Series: Extreme structural bonding for rough, outdoor, or high-vibration metal surfaces.
- Custom Ferrite Anti-Metal Shielding: Ultra-thin high-permeability magnetic layers that prevent metal surface interference.
Applications — Tools, PCB Assets & Compact Livestock ID
Ultra-small form factors with rugged encapsulation protect aesthetics while enabling automated asset ID:
Small Tool and Medical Instrument Tracking
Small hand tools, drill bits, and surgical instruments leave zero room for bulky hardware. We integrate miniature tracking chips directly into tiny recesses or flush-mount them using high-strength bonding.
- Surgical Tray Management: Withstand repeated autoclave sterilization cycles while maintaining instant identification.
- Precision Hand Tools: Prevent loss and track calibration schedules in high-compliance aerospace and defense environments.
- On-Metal Mounting: Embedded ceramic designs prevent metal interference, maintaining strong read rates on solid steel.
Tracking PCB Assemblies and Industrial Assets
Printed Circuit Boards (PCBs) require identification tags that survive harsh manufacturing environments like wave soldering and chemical washes.
| Asset Type | Primary Challenge | Our Micro UHF Solution |
|---|---|---|
| Electronics (PCBs) | Extreme heat, tight spaces | Heat-resistant ceramic tags soldered directly onto boards |
| Heavy Machinery Components | Shock, vibration, oil exposure | Encapsulated FR4 or ceramic micro tags |
| Industrial Molds & Dies | High pressure, thermal cycles | Flush-mounted, flush-fit on-metal tags |
Brand Protection and Anti-Counterfeiting
High-value consumer goods like luxury jewelry, eyewear, and designer handbags require discrete authentication solutions.
- Concealed Embedding: We stitch micro RFID transponders directly into seams or embed them inside watch cases.
- Tamper-Proof Encryption: Encrypted chip memory guarantees authenticity and secures your supply chain against grey market diversion.
- Aesthetic Preservation: Ultra-thin, invisible footprints protect brand integrity while providing instant proof of ownership.
Smart Inventory Control and Micro-Logistics
Modern micro-logistics relies on real-time item-level visibility. Our miniature RFID transponders allow high-density scanning without manual line-of-sight requirements.
- Automated Stock Audits: Scan entire trays of high-value micro-components in seconds using standard RAIN RFID readers.
- Automated Reordering: Integrate tagged bin systems directly with your inventory management software for automated replenishment.
- Shrink Reduction: Detect unauthorized movement at critical checkpoints to protect sensitive inventory.
Compact Livestock ID & Remote Gate Reads
Micro ceramic and PCB builds also support compact animal identification where full-size
electronic ear tags will not fit recess mounts on bands or mini housings. Pair with portal
readers for livestock tracking, cattle management sort lanes, and
goat tagging projects that need hands-free remote tracking at chutes—
validate reading distance on your metal panels before bulk orders.
How to Select Micro UHF Custom RFID Tags
Match chip, substrate, and antenna tuning to your mounting surface before locking MOQ:
- Surface type: On-metal ceramic/PCB with ferrite backing vs flexible PET for curved plastics.
- Size vs range: Smaller footprints trade extended read range for recess fit—validate with handheld and fixed readers at your lane width.
- Environment: IP68 washdown, high-temp autoclave, or vibration—pick encapsulation before adhesive class.
- Encoding: Sequential EPC, GS1 SGTIN-96, or locked user memory for data capture workflows.
- Density: For multiple tags reading in trays, confirm spacing against
minimum spacing for UHF RFID tags on metal guidance.
Compare larger on-metal builds via
RFID UHF metal tags
when recess depth allows a thicker antenna.
Factory Quality Control & Manufacturing Process
Inline test and traceability cover every micro tag batch before export:
Genuine Silicon Guarantee
We partner directly with leading chip manufacturers to source 100% authentic silicon from Impinj (Monza R6-P, M700 series) and NXP (UCODE 8, UCODE 9).
- Direct Sourcing: No gray-market components or refurbished dies.
- Traceability: Full lot tracking from raw silicon wafer to final product delivery.
- Performance: Maximum read sensitivity and memory stability across all micro form factors.
In-House Precision Machinery
Producing a tiny passive rfid transponder requires high-precision manufacturing. Our automated facilities utilize state-of-the-art Equipment:
| Equipment Type | Function | Precision / Standard |
|---|---|---|
| High-Speed Flip-Chip Bonders | Mounts microscopic chips onto custom antenna substrates | Alignment accuracy down to ±5 microns |
| Laser Micromachining Systems | Cuts ultra-compact antenna geometries for micro tags | Sharp edge control without thermal damage |
| Automated Lamination Line | Encapsulates tags in PCB, ceramic, or high-temp resins | Seamless IP68 waterproof protection |
100% Automated Inline Read/Write Testing
Zero-defect manufacturing is our baseline. Every single micro tag goes through rigorous inline testing before packaging:
- Frequency Verification: Checks resonant frequency across the RAIN RFID (860-960 MHz) band.
- Data Pre-Encoding: Validates custom EPC memory structure and lock settings.
- Read/Write Thresholding: Logs data capture thresholds and rejects weak chips automatically to guarantee advertised read range performance on target materials.
ISO Certifications & Industry Compliance
Our factories operate under strict international quality and environmental management systems:
- ISO 9001: Standardized quality management for manufacturing consistency.
- ISO 14001: Sustainable and eco-friendly manufacturing practices.
- EPCglobal Gen2 / RAIN RFID: Full compliance with global UHF standards.
- RoHS & REACH: Safe, non-hazardous materials approved for worldwide distribution.
Commercial Terms & Procurement Guidance
Volume tiers, sample kits, and lead-time tables support B2B procurement of micro uhf custom rfid tags:
What is the minimum order quantity (MOQ) for custom runs?
Our standard Minimum Order Quantity (MOQ) for micro uhf custom rfid tags starts at just 1,000 units for standard custom runs. For complex OEM/ODM projects requiring specialized chip pre-encoding, custom dimensions, or custom 3M adhesives, MOQ ranges between 3,000 and 5,000 units depending on the specific build.
- Standard Micro Tags: 1,000 pieces
- Custom Antenna & Tuning: 3,000 pieces
- Specialized High-Temp / PCB Tags: 5,000 pieces
How can I request free sample evaluation kits?
We offer free sample kits to qualified B2B engineering teams so you can test read range performance on your own assets before placing a production order.
- Requesting Samples: Contact our sales team with your project specs and target application.
- What’s Included: A selection of micro ceramic tags, flexible printable labels, and mini on-metal tags.
- Shipping: Evaluation samples are free—you only cover express shipping.
What are the typical production lead times?
We prioritize fast turnaround times to keep your industrial supply chain moving.
| Order Phase | Standard Lead Time | Expedited Option |
|---|---|---|
| Sample Prototypes | 3 to 5 business days | Available upon request |
| Standard Custom Runs | 10 to 12 business days | 7 business days |
| High-Volume OEM Orders | 15 to 20 business days | Scheduled partial shipments |
How does tiered volume pricing work for B2B orders?
We pass on direct factory savings to our enterprise partners through tiered volume pricing:
- Tier 1 (1,000 – 5,000 units): Standard wholesale pricing for low-volume deployments.
- Tier 2 (5,000 – 25,000 units): Discounted rate with complimentary surface printing or custom EPC pre-encoding.
- Tier 3 (50,000+ units): Maximum volume discount with dedicated account management and custom delivery schedules.
Frequently Asked Questions (B2B FAQ)
How does tag size affect the read range of a micro UHF RFID tag?
Tag size directly impacts antenna surface area. Smaller antennas capture less RF energy, which reduces total read distance. However, we engineer custom micro UHF RFID tags with optimized chip sensitivity to maximize performance in tight spaces.
| Tag Form Factor | Average Antenna Size | Typical Read Range |
|---|---|---|
| Ultra-Micro Ceramic | 3 × 3 mm to 5 × 5 mm | Up to 0.5 meters |
| Miniature PCB Tag | 10 × 2.5 mm | 1.0 to 1.5 meters |
| Compact Flexible Label | 15 × 15 mm | 2.0 to 3.5 meters |
Can micro UHF RFID tags work directly on metal surfaces?
Standard RFID tags fail on metal due to signal reflection. We manufacture specialized micro ceramic RFID tag options and durable PCB tags with built-in anti-metal backings. These miniature tracking chip designs leverage the metal substrate as an antenna extension to boost signal strength rather than block it.
What variable data options can be customized on the tag surface and chip memory?
We deliver fully personalized micro UHF custom RFID tags tailored to your workflow requirements:
- Chip Memory: Custom EPC pre-encoding, user memory lock, unique TID serialization, and custom access passwords.
- Tag Surface: High-resolution laser engraving, 2D DataMatrix codes, QR codes, human-readable text, and custom brand logos.
What is the process for testing custom prototype tags before committing to a full production order?
We make sampling seamless for B2B engineering teams:
- Requirements Review: Share your asset dimensions, substrate materials, and target read range.
- Sample Kit Shipment: Receive an evaluation kit featuring various micro form factors and adhesives.
- Custom Prototyping: If standard samples do not fit, we build a short sample run of custom-tuned prototypes for on-site validation.
Are high-temperature or autoclave-resistant micro tags available for medical or industrial use?
Yes. We manufacture rugged micro UHF custom RFID tags built for harsh conditions. Utilizing specialized ceramic and resin encapsulations, our tags offer high temperature resistance up to 230°C (446°F) and easily endure repeated medical autoclave cycles, chemical washdowns, and industrial heat exposure.
Can micro UHF tags support multiple tags reading in dense trays?
Yes. Tuned micro antennas and reader anti-collision settings enable stable multiple tags reading
in tool trays and component bins. Confirm frequency range licensing for your region and test
with your fixed portal or handheld reader at production power levels.
Request a Quote
Share substrate material, target reading distance, regional frequency range, marking needs, and annual volume for configured micro uhf custom rfid tags.
Contact JN RFID with asset photos, reader model, and on-metal spacing constraints from your install layout.
